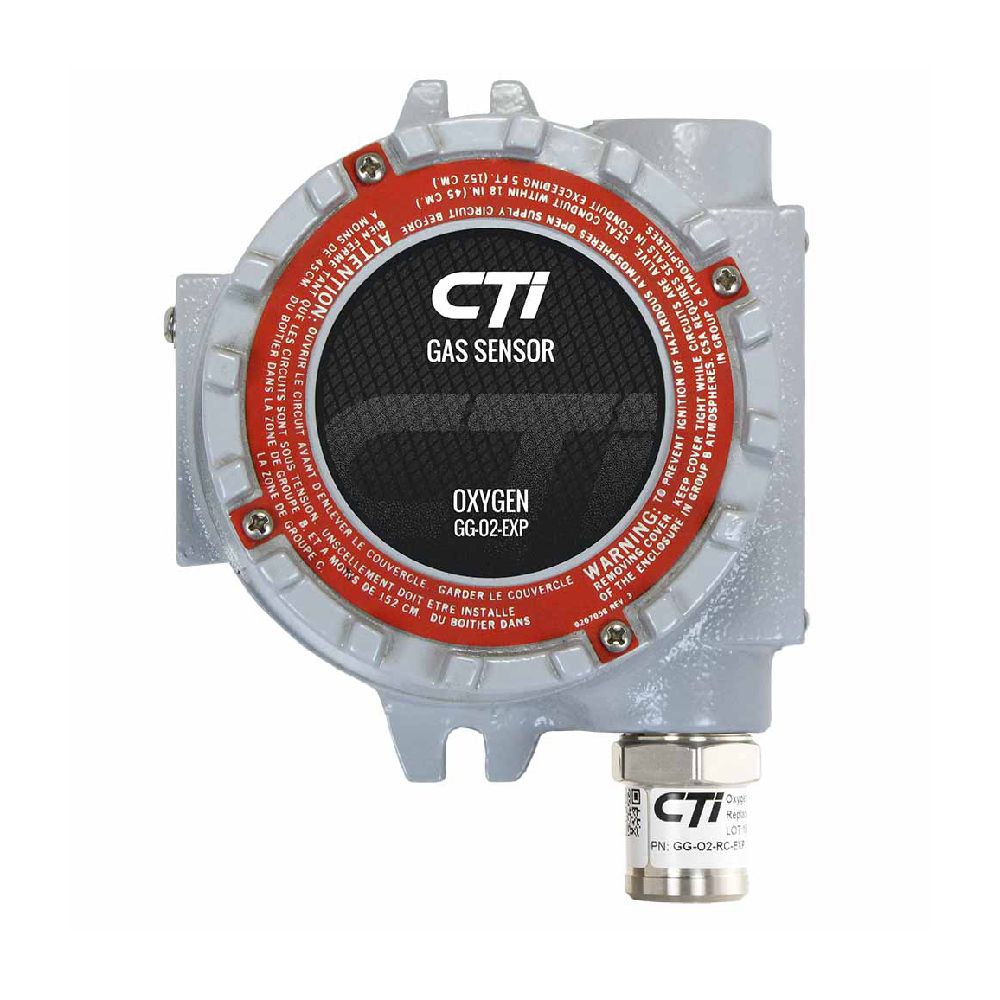

GG-O2-C0-DM CTI Gas Sensor, Oxygen 0-25%, Duct Mount Enclosure, 4/20 mA Output

The GG-O2-C utilizes a proven oxygen sensor with a typical life-span of 3 years. With a large capacity electrolyte reservoir for exceptional cell life, the GG-O2-C electrochemical cell is designed with excellent chemical durability and is not affected by pressure changes or interference gases such as carbon dioxide.

Every GG-O2-C sensor comes equipped with an internal temperature control designed to perform in the harshest of areas. The controlled environment provides temperature and moisture control for extended cell life. The highquality injection-molded polycarbonate enclosure offers excellent chemical corrosion protection and high impact resistance.

The GG-O2-C provides an industry standard linear 4/20 mA output signal compatible with most gas detection systems and PLCs. The output signal is not affected by drastic temperature variations such as washdown and defrost cycles, and is minimally affected by barometric pressure changes.

Features:

• Oxygen specific electrochemical sensor technology
• 3-year cell life typical
• Industry standard linear 4/20 mA output
• Corrosion, weather, and chemical resistant polycarbonate sensor enclosure
• Temperature and moisture control for improved cell life
• Temperature compensated
• Sensor designed to adapt to any harsh environment from -30°F to +125°F
• Accurately monitor oxygen deficiency or enrichment levels
• Real-time continuous monitoring for early leak detection
• Detection ranges of 0-25% or 15-25% O2 (volume)
