535C0513H01 Frick Oil Filter Assembly, 6 OD - RXF Models

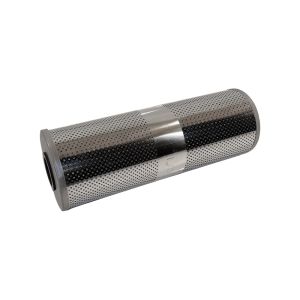

Frick Oil Filter Assembly, 6" OD.Assembly includes:531A0224H02 - SuperFilter™ II Oil Filter Element959A0082H02 - Gasket535A0378H01 - SpringCapscrew, 3/8 x 1-3/4 UNCFits models:Frick RXF 58 – 101 rotary screw compressor units*There are two types of oil filter canisters used on Frick RXF 58 – 101 units. The most common type, shown above, has a round ten bolt cover plate which is sealed with a gasket. The oil filter part number is 531A0224H02 and the gasket part number is 959A0082H02. The second type, below left, has a square four bolt cover plate that is sealed with an O-ring. The part number for the oil filter is the same as above, 531A0224H02. The O-ring part number is DEE039100545T. This part number has been entered at Baltimore Parts. It is always a good idea to have a new gasket when changing the oil filter, the same goes for the O-ring. The gasket and O-ring must be ordered separately.
