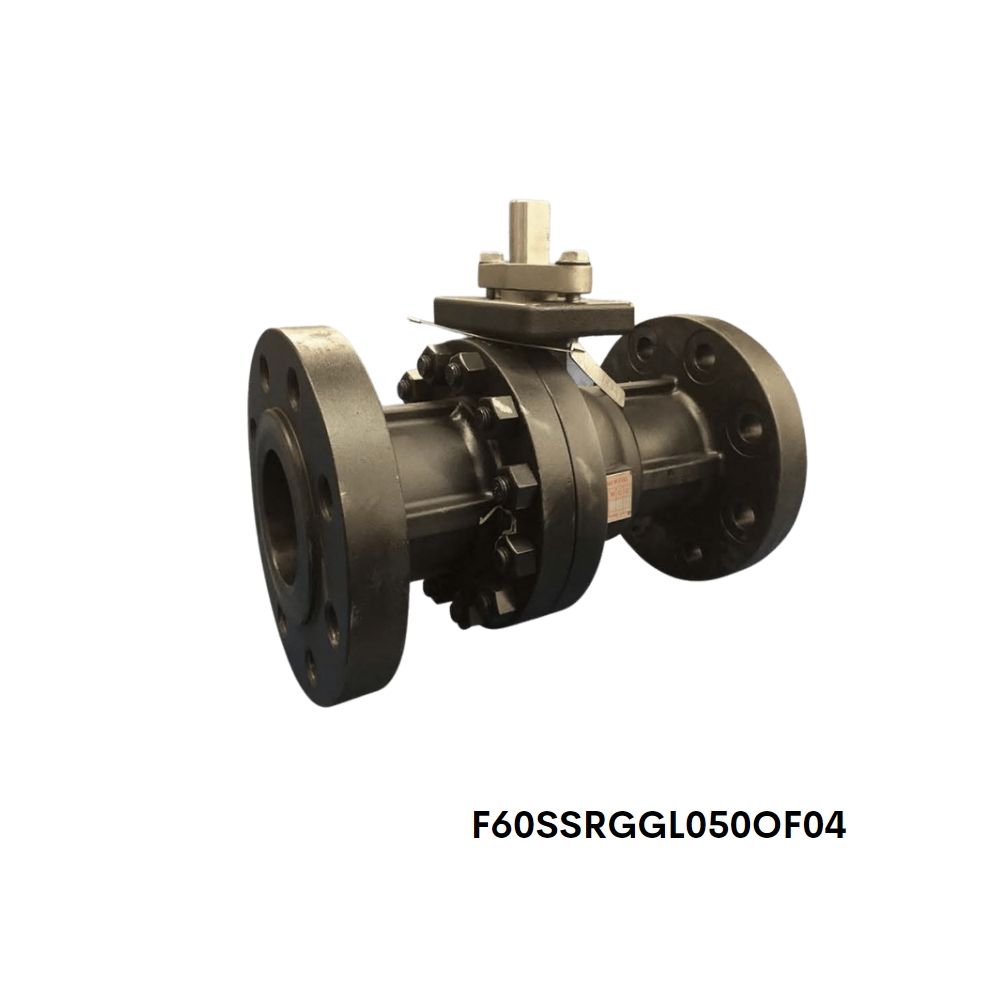

F60-SS-RGG-L-050-OF04 Flo-Tite 2" Stainless Steel Flanged Ball Valves, Petro Series F60

The Flo-Tite Flanged Series is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Models:

F60 Floating Ball Design
ANSI Class 600
Size: 2" - 6"

Full Port Design:

• 2PC Split Body Design

Standard Materials of Construction:

• WCB & LCB with 304SS Trim
• Also Available in CF8M/316SS
• RF or RTJ Flanged Connections

Design Features:

• Investment Castings
• Floating Ball Design
• Locking Device
• Blow-out Proof Stem
• Anti Static Ground
• Graphite Stem & Body Seals
• Pressure Testing API 598, BS 6755 PT-1
• Actuator Mounting Pad - ISO

Standards of Compliance:

• ANSI Class 600
• Flanges ANSI B 16.5
• Face to Face ANSI B 16.10
• Shell/Wall ANSI B 16.34
• Fire Safe API607-4
• NACE MRO1-75
• API-6D / ISO-9001
• CE Certified
