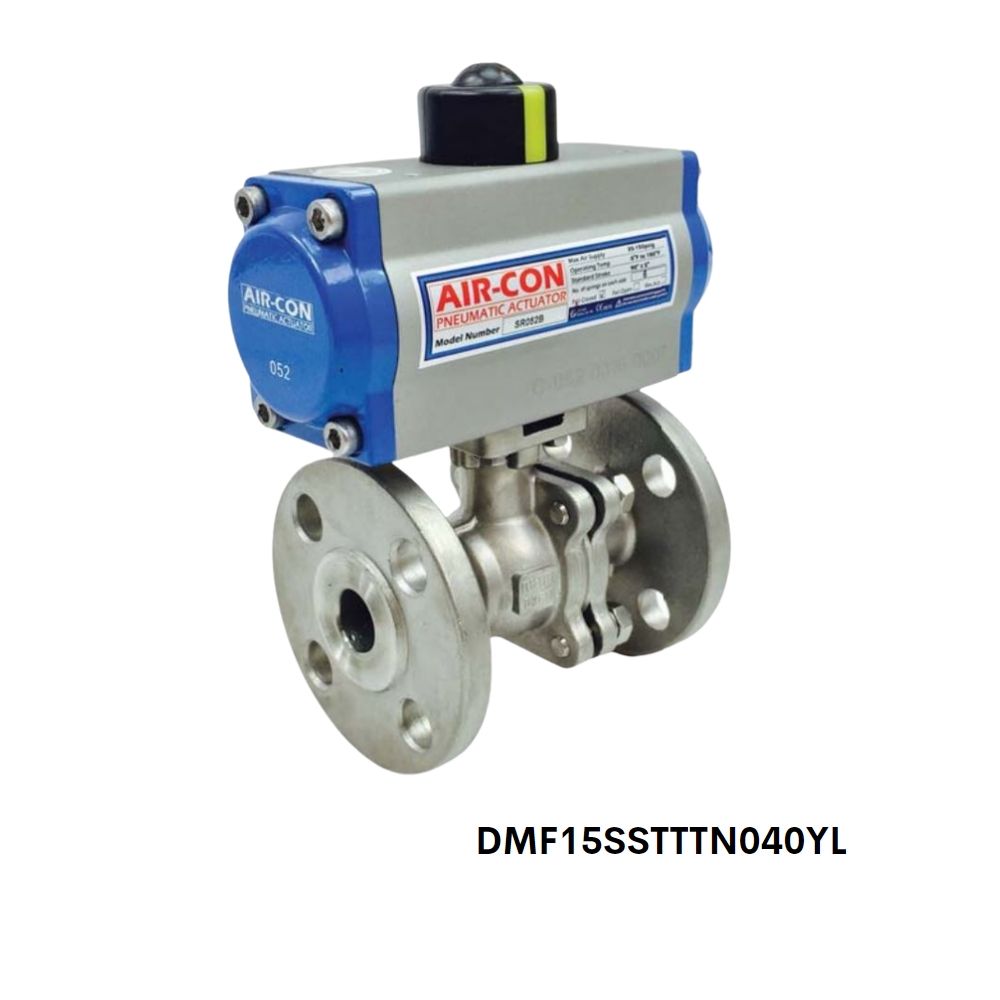

DMF15-SS-TTT-N-040-YL Flo-Tite 1-1/2" Stainless Steel Direct Mount Ball Valves, Econoflo DMF15

The Flo-Tite DM F15 Series are designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

 Valve Features:

• Two-Piece Body, Full Port Design
• ANSI Class 150 Flanged Ends
• Body: CF8M, 316SS
• PTFE, RTFE or TFM Seats
• Size Range: 1/2" to 4"
• Pressure Rating: 275 MAWP/WOG
• Temperature Range: -20°F to 400°F

Design Advantages:

• ISO 5211 Direct Mounting Pad - Provides for precise shaft alignment & eliminates the need for brackets and couplings.
• Live-Loaded Stem Assembly extends cycle life.
• Blow out Proof Stem
• Low Torque Design
• Investment Cast 316SS
• MTR Available, Consult Factory
• 100% Air Tested Under Water @ 100 PSI
