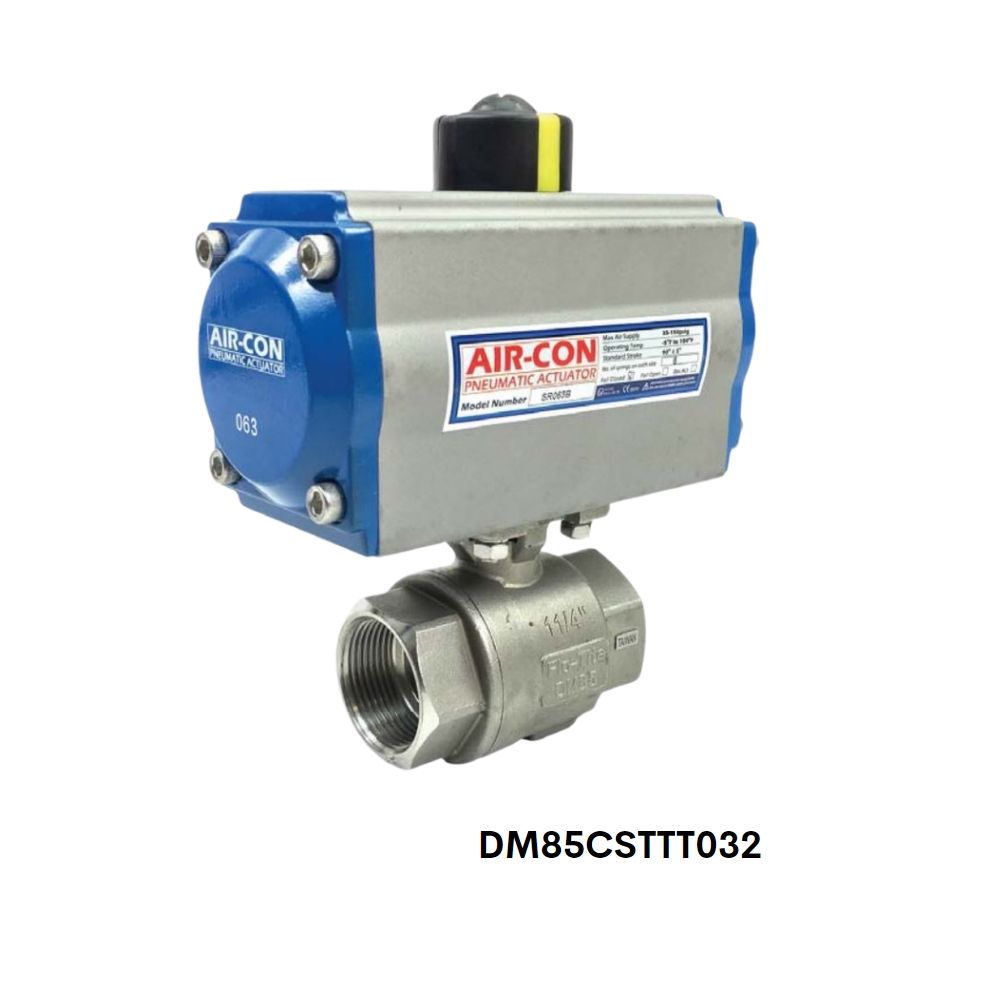

DM85-CS-TTT-032 Flo-Tite 1-1/4" Carbon Steel Direct Mount Ball Valves, Econoflo DM85

The Flo-Tite DM85 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Valve Features:

• Two-Piece Body, Full Port Deisgn
• Threaded NPT ends
• Body: WCB or CF8M, 316SS
• Seats: PTFE, RTFE or TFM
• Size Range: 1/2" to 2"
• Pressure Rating: 1000 MAWP/WOG
• Temperature Range: -20°F to 450°F

Design Advantages:

• ISO 5211 Direct-Mounting Pad - Provides for precise shaft alignment & eliminates the need for brackets and couplings
• Improved Seat Material - Extends cycle life and reduces torque
• Blow-out Proof Stem
• Locking Device
