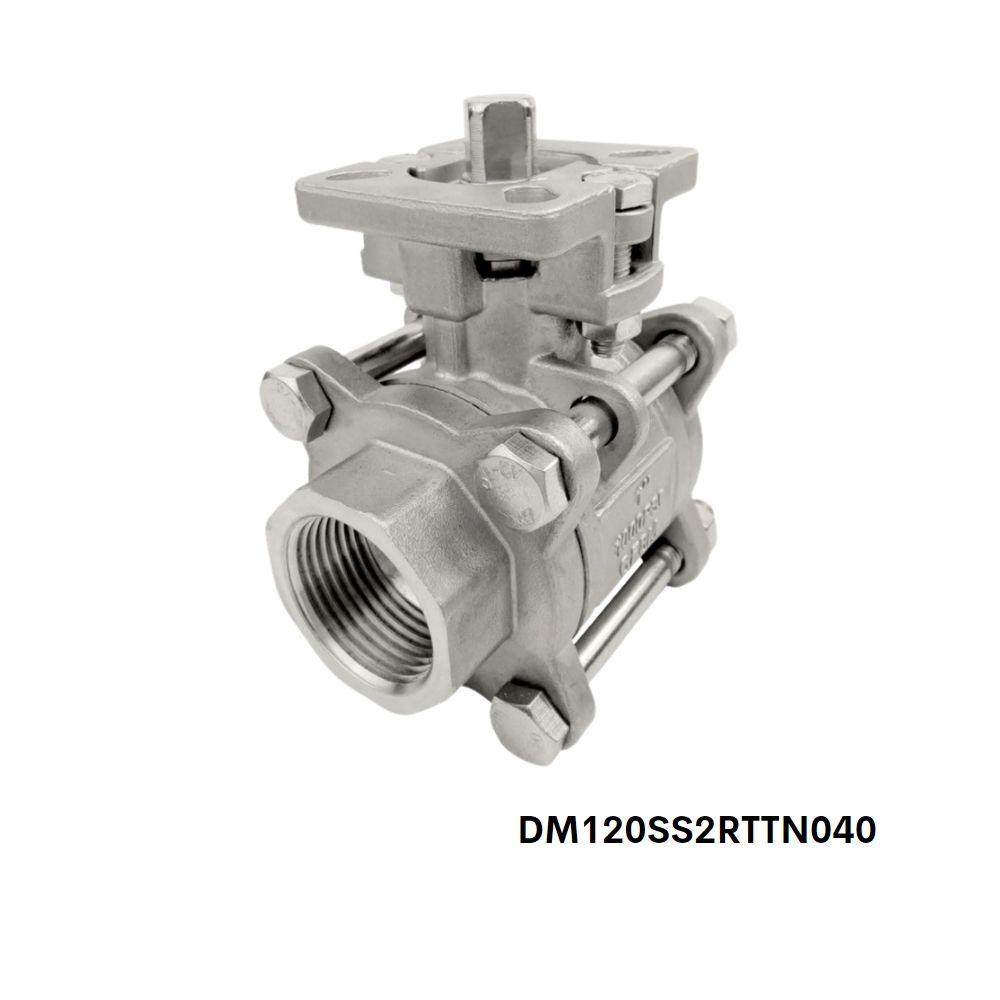

DM120-SS-2-RTT-N-040 Flo-Tite 1-1/2" Stainless Steel Direct Mount Ball Valves, Direct Connect DM 120 SS

Flo-Tite's Direct Mount Series provides for an extended valve cycle life. The primary seal is a washer that fits firmly on the stem shoulder. The secondary seal (back-up) seal is provided by an O-ring and a set of self-lubricating RPTFE Vee packing rings, energized by Belleville washers. This design adjusts packing compression to compensate for wear, pressure, or temperature fluctuations even when “Direct-Mount” actuation and insulation are utilized.

Features:

• 3 Piece Body
• Full Port Design
• Threaded or Socket-Weld Ends
• Body: CF8M, 316SS
• Direct Mount - ISO 5211 - Provides precise shaft alignment & eliminates the need for brackets and couplings
• Three Piece Swing Out Design for easy maintenance
• Improved Seat Material - Extends cycle life and reduces torque
• Blowout-proof Stem
• Anti-Static Device - Standard in all sizes
• Adjustable "Live Loaded" Stem Seal
• Threaded NPT Ends per ASME B1.20.1
