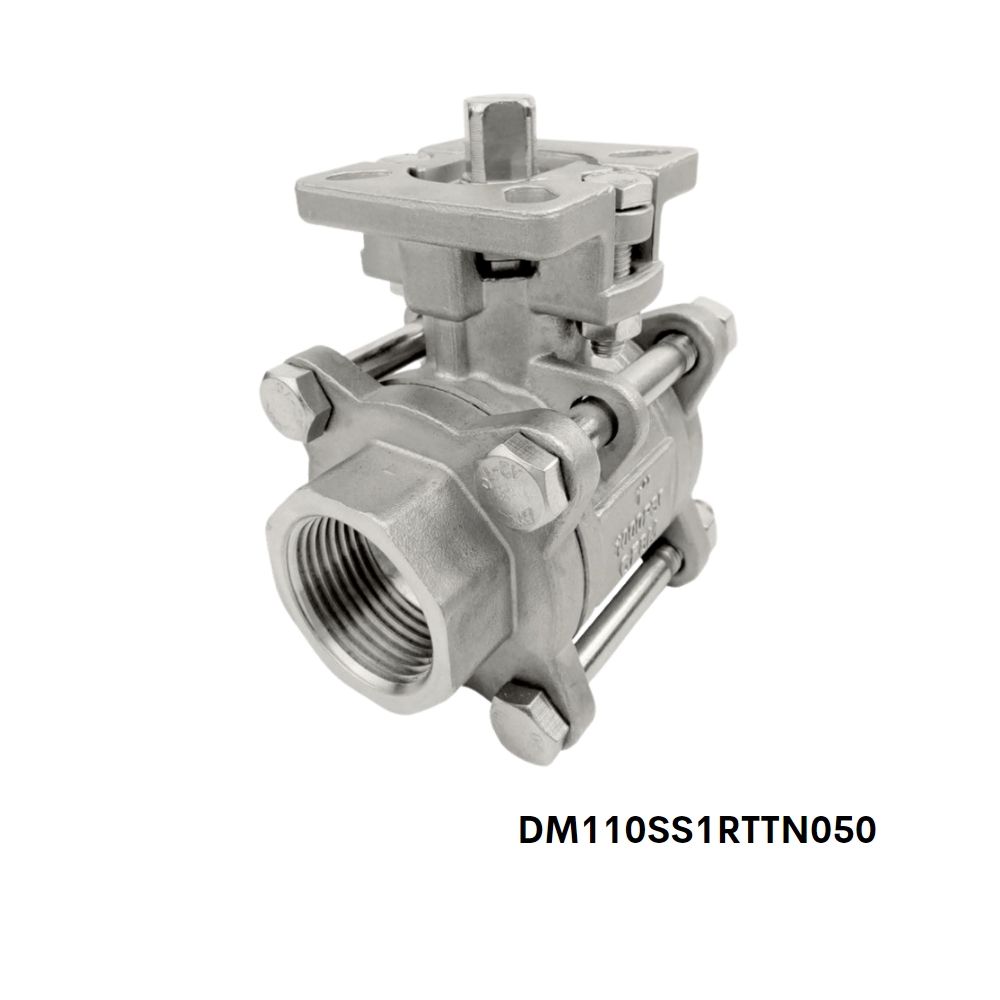

DM110-SS-1-RTT-N-050 Flo-Tite 2 Stainless Steel Direct Mount Ball Valves, Direct Connect DM 110 SS

Flo-Tite's Direct Mount Series provides for an extended valve cycle life. The primary seal is a washer that fits firmly on the stem shoulder. The secondary seal (back-up) seal is provided by an O-ring and a set of self-lubricating RPTFE Vee packing rings, energized by Belleville washers. This design adjusts packing compression to compensate for wear, pressure, or temperature fluctuations even when “Direct-Mount” actuation and insulation are utilized.Features:3 Piece BodyFull Port DesignThreaded or Socket-Weld EndsBody: CF8M, 316SSDirect Mount - ISO 5211 - Provides precise shaft alignment & eliminates the need for brackets and couplingsThree Piece Swing Out Design for easy maintenanceImproved Seat Material - Extends cycle life and reduces torqueBlowout-proof StemAnti-Static Device - Standard in all sizesAdjustable "Live Loaded" Stem SealThreaded NPT Ends per ASME B1.20.1
