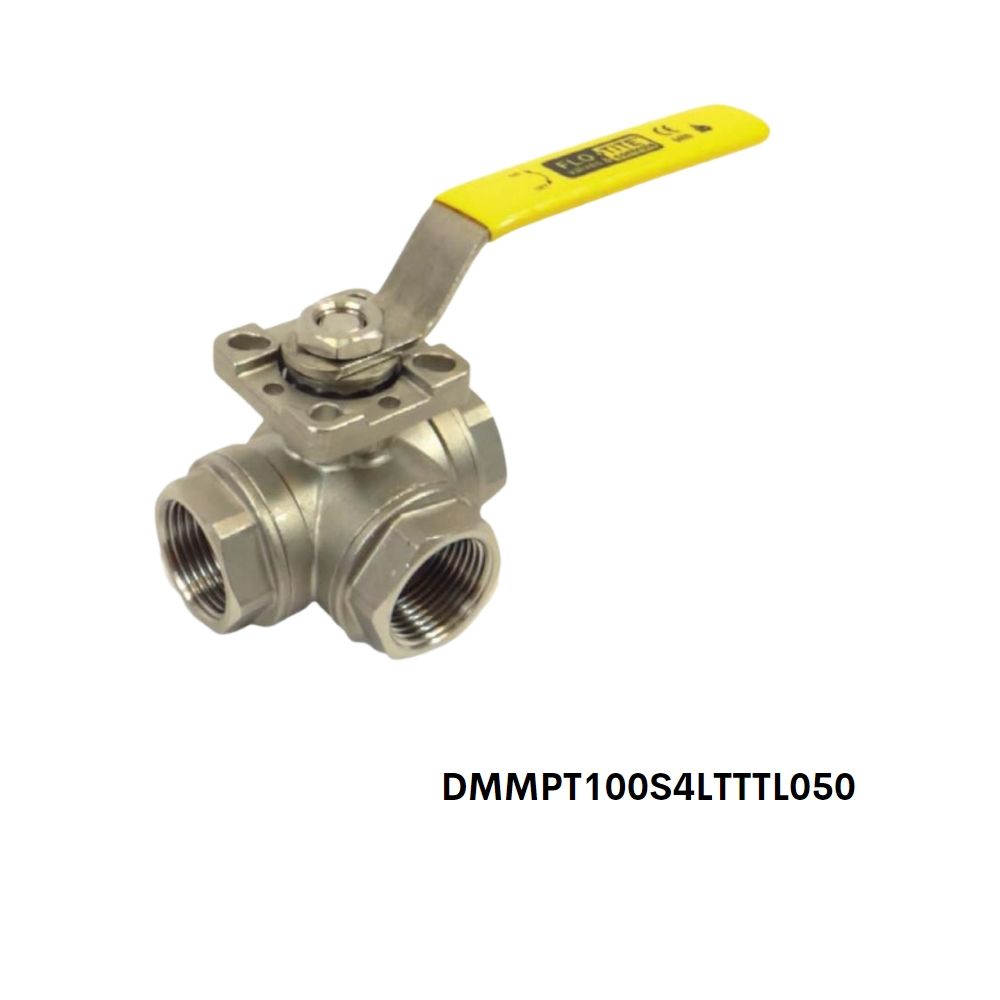

DM-MPT100-S4-L-TTT-L-050 Flo-Tite 2" 316SS Multi-Port Ball Valves, Multi-Port Ball Valve DM-MPT100

The Flo-Tite MPT 355 / 365 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the “free-floating” ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Design Features:

• Quality Investment Cast Components
• All Stainless Steel Construction
• 1000 WOG Rating
• Threaded Ends
• ISO 5211 Direct Mount Pad - Provides for precise shaft alignment & eliminates the need for brackets and couplings.
• Locking Handle standard on all valves.
• All valves have four seats which allow operation in the off position.
• Locking Handle, Locks At 90°Intervals, Full 360°
