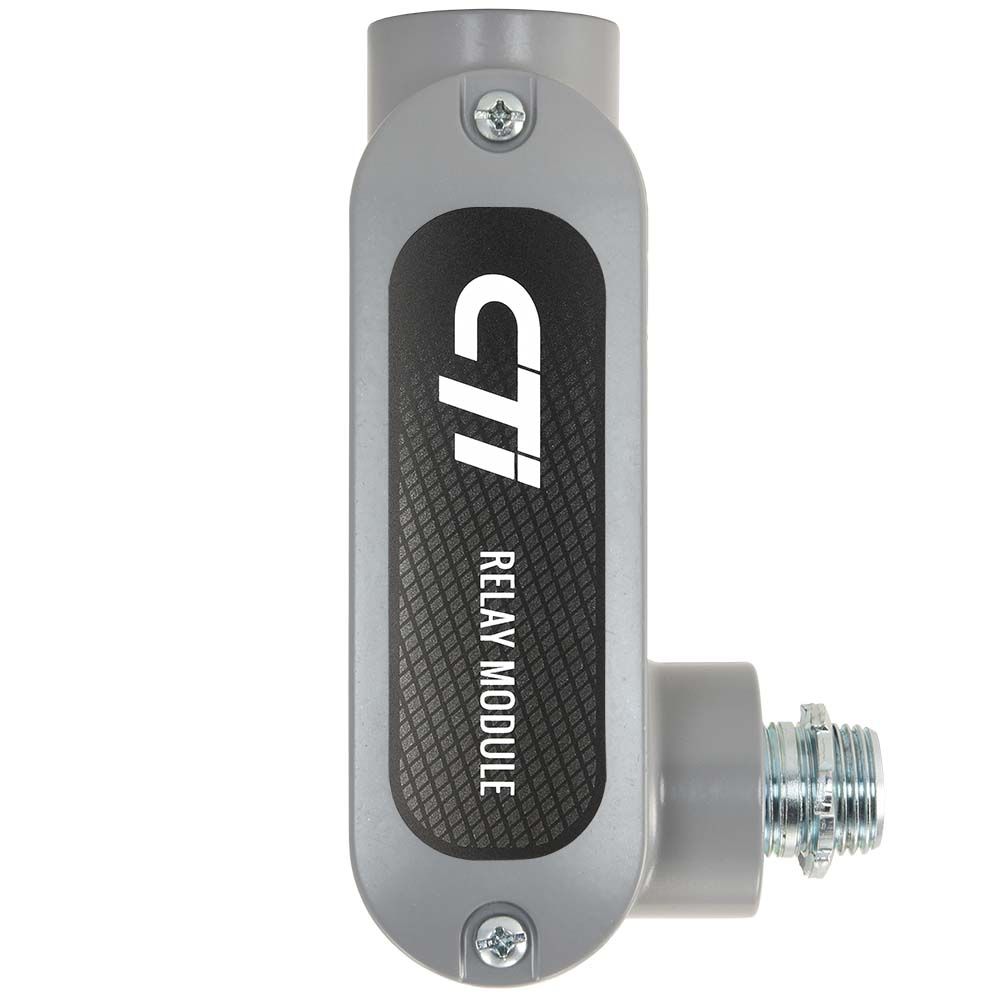

RM420-LR CTI Relay Module 4-20mA, LR configuration, adjustable alarm levels (1-99% of scale), suitable for

The Relay Module is an economical solution to adding a fail-safe relay output to any 4-20 mA device. It can be directly mounted and wired to any GG sensor to provide equipment shutdown such as rooftop AHU's, solenoid valves, etc. The relay module can also be used with a horn strobe to provide audio visual notification at the sensor location.Key Features:4-20 mA feed-through design maintains signal output functionRelay output with Form C dry contacts, 8A, 24VDC, or 120VAC24VDC power requirements with 4-20 mA signal input2-second alarm / 10-second clear, non-latching relayCircuit board with terminal block for easy wire landingsAdjustable alarm setpoints (1-99% of scale), with rotary switchesThreaded insert allows for 1/2” or 1” conduit and fittingsLR rigid conduit body allows for outdoor or wash-down installationEconomical alternative to long control-wiring pulls2 year warranty
