SKU
GG-LEL2-C3H7OH

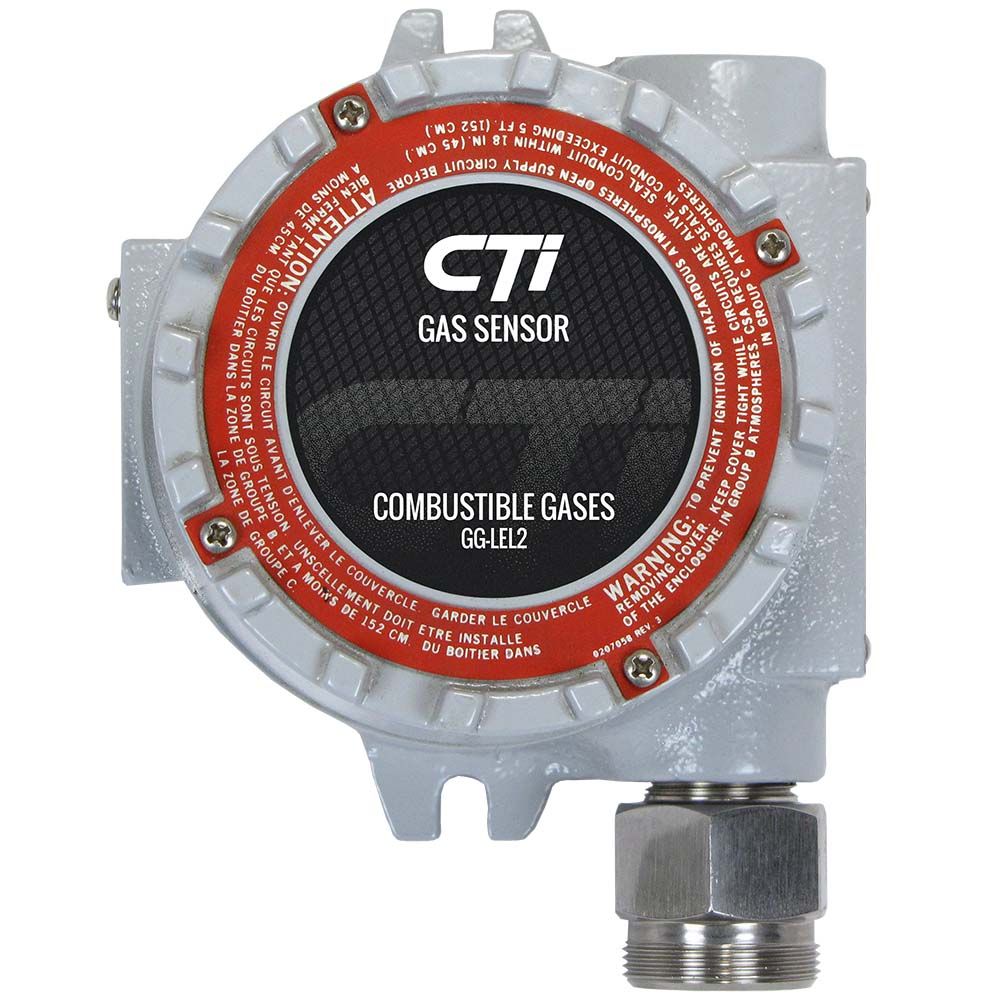

GG-LEL2-C3H7OH CTI Gas Sensor Isopropyl Alcohol 0-100% LEL 4-20 mA Output, Explosion Proof Housing
The GG-LEL2 utilizes catalytic-bead sensor technology with a matched pair of detector elements. When combustible vapors enter the sensor, the passive bead remains unchanged while the active detector bead catalyzes the oxidation of gas, generating heat and changing its resistance. The resulting change in resistance is accurately measured across the bridge circuit.
Web Price
$1,275.00
Details
The GG-LEL2 sensor provides an industry standard linear 4/20 mA output signal proportional to 0-100% LEL of the target gas. The transmitter is compatible with most gas detection systems and PLCs. Long sensor life with minimal span adjustment can be expected in most applications. The sensor is designed for simple calibration and is field replaceable.
Key Features:
- Useful for activation of electrical shunt-trip, ventilation, or fuel supply shutoff
- Industry standard linear 4/20 mA output
- Calibrated for desired combustible gas 0-100% LEL (specify target gas)
- Sensing element designed for long life in harsh industrial environments
- Class l, Div 1, Groups B, C, and D explosion-proof housing
- Designed to perform in temperatures of -40°F to +140°F
- Real-time continuous monitoring
More Information
| Weight | 4.600000 |
|---|---|
| Condition | New |
| Brand | CTI (Calibration Technologies Inc) |
| Detection | Catalytic Bead (diffusion method) |
| Size | 6.75" high x 5.25" wide x 4.5" deep |
| Temperature Range | -40F to +140F (-40C to +60C) |
| Warranty | 2 years sensing element and transmitter |
