8-Base Strut-8 Rooftop Pipe Support - 2.5 ID/3 OD
Web Price
$33.67
Unlock pro savings, tools, exclusive offers, and more.
Create a FREE Account
Details

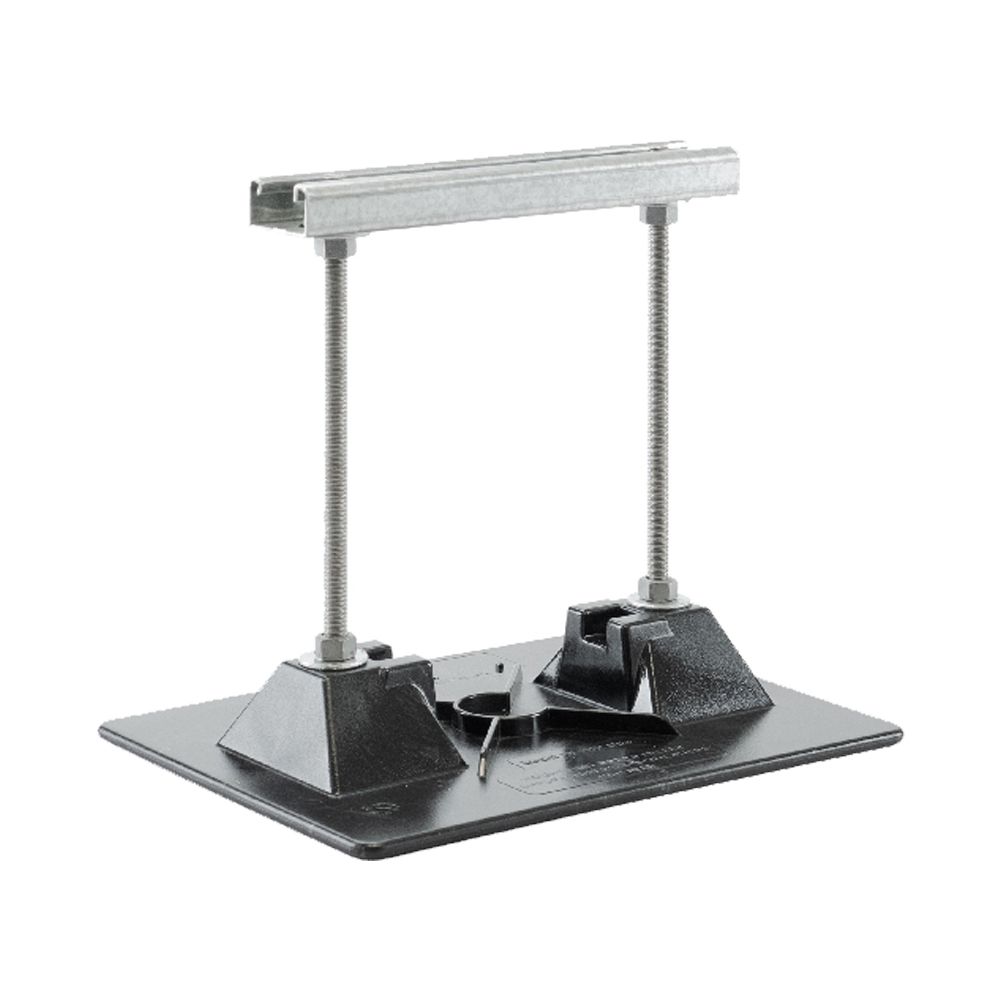

Miro 8-Base Strut-8 Rooftop Pipe SupportA pipe support with "strut" used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane.Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel.Pipestand will accommodate up to 2.5" pipe (inside diameter) or up to 3" (outside diameter) pipes.FeaturesDesigned to support conduit (ganged) cable trays or other mechanical piping.Adjustable from the factory set maximum height of 8-7/8" down to a minimum height of 3-1/2"Maximum load is 172 lbs. (3.0 psi) Make certain each support is properly elevated to evenly distribute weight at all support locations.Recommended spacing is not to exceed 10' centers depending upon the load.Base Material: PolycarbonateAll metal parts are either stainless steel or hot-dip galvanized.Unit Weight: 2.33 lbs.
More Information
| Weight | 2.500000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Quantity | 1 |
| Base Material | Polycarbonate/Stainless Steel |
| Size | The deck base is 7.5" by 10" and the strut is 1 5/8" by 13/16" strut and 8" long. |
| Maximum Pipe Size | 2.5" inside diameter and 3" outside diameter. |
| Maximum Pipe Clearance | Maximum pipe clearance of 8.875". |
| Maximum Load Weight | Maximum load weight may not exceed 172 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
