SKU
A-36-BS-5
Brand:

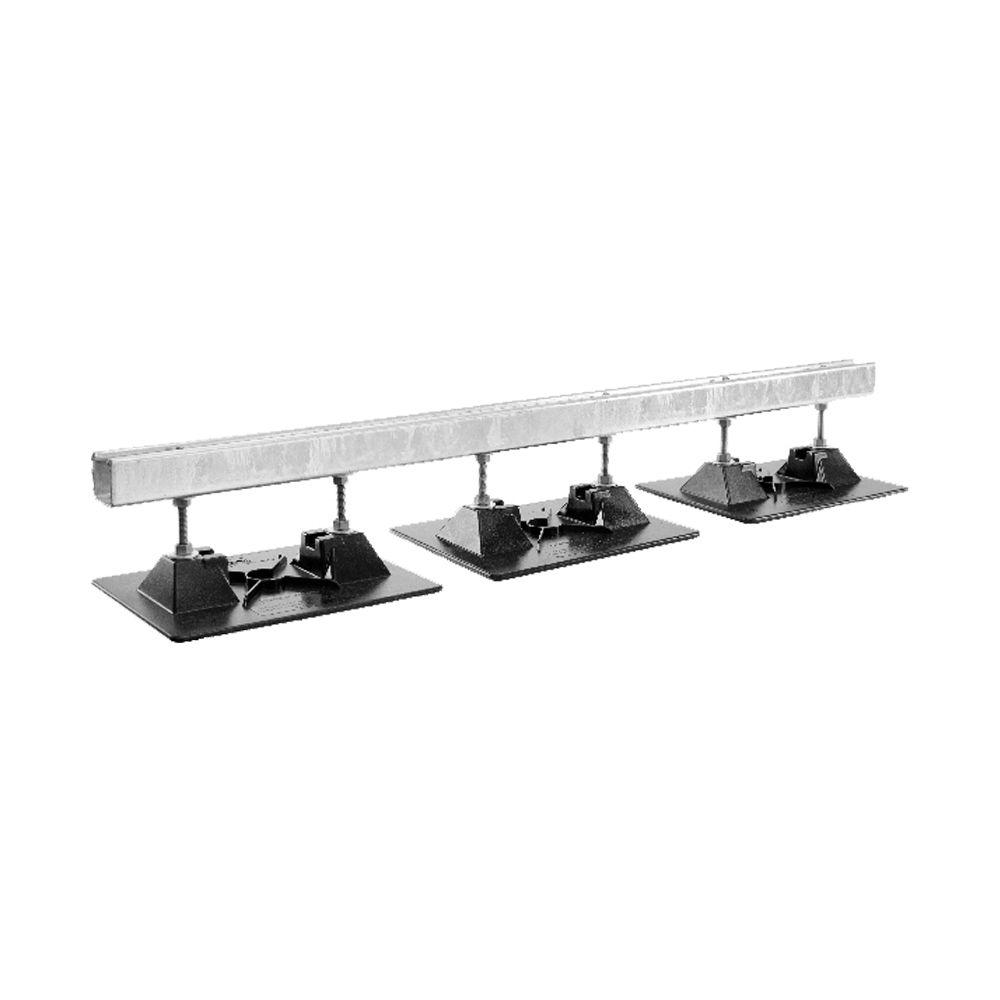

A-36-BS-5 Miro 36-Base Strut-5 Strut Rooftop Pipe Support - (3) 7" x 10" Bases w/ 36" Channel Length
36" wide and 5" above roof.
Web Price
$71.48
Details
A pipestand with a strut and clamp pipe support system used for supporting roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Pipes rest on a 24" length of channel which is mounted on the bases. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.
More Information
| Weight | 7.500000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Base Material | Polycarbonate |
| Size | The support consists of (3) 7" by 10" bases with a 36" length of channel. |
| Maximum Pipe Clearance | Adjustable support height from 4.125" to 5.5" |
| Maximum Load Weight | Maximum load weight may not exceed 115 lbs/ft. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
