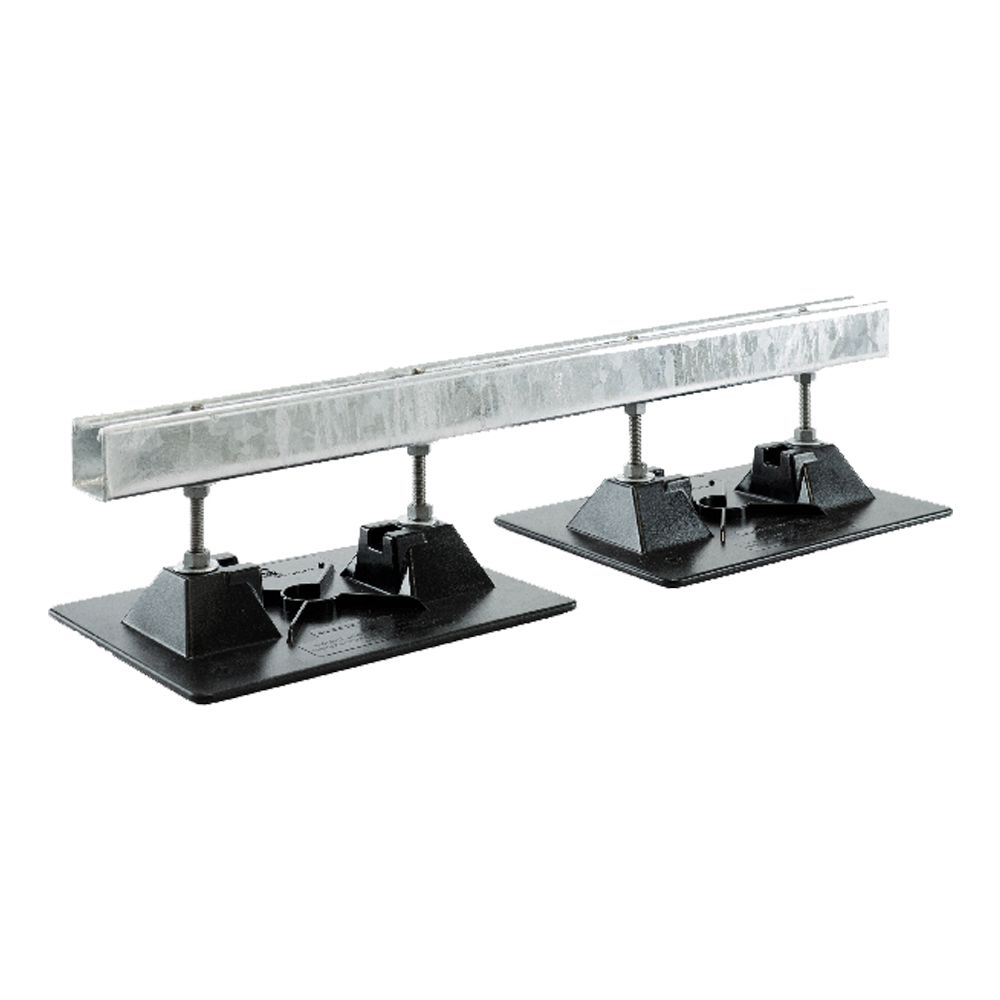

A-24-BS-5 Miro 24-Base Strut-5 Strut Rooftop Pipe Support - (2) 7" x 10" Bases w/ 24" Channel Length

A pipestand with a strut and clamp pipe support system used for supporting roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping.

Pipes rest on a 24" length of channel which is mounted on the bases. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.

Features

• Designed to support conduit (ganged) cable trays or other mechanical piping.
• Adjustable from the factory set maximum height of 6-1/8" down to a minimum height of 4-1/8"
• Maximum load is 172.5 lbs/ft. (3.0 psi) Make certain each support is properly elevated to evenly distribute weight at all support locations.
• Recommended spacing is not to exceed 10' centers depending upon the load.
• Base Material: Polycarbonate
• All metal parts are either stainless steel or hot-dip galvanized.
• Unit Weight: 6.11 lbs.
