SKU
A-16-BS-12-4
Brand:

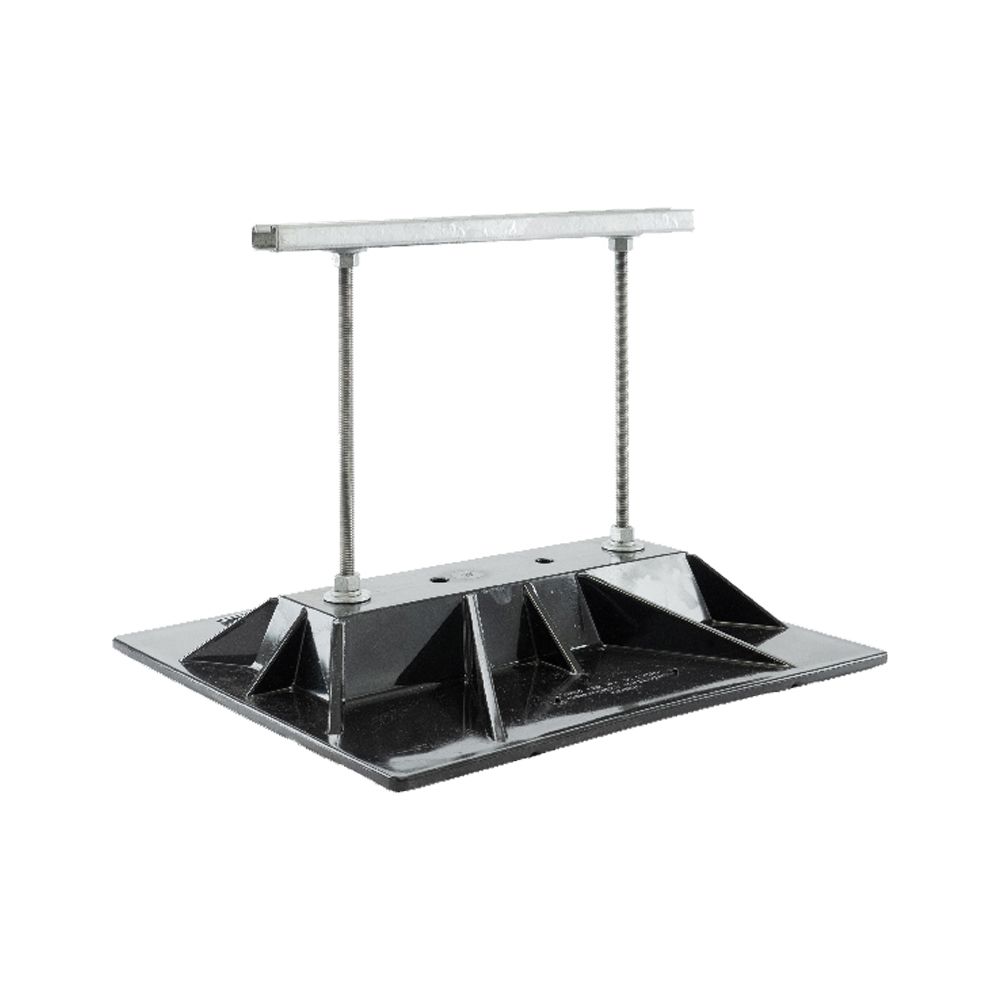

A-16-BS-12 Miro 16-Base Strut-12 Strut Rooftop Pipe Support - 16 x 18 Deck Base (Case of 4)
16-Base Strut-12 Strut Rooftop Pipe Support - 16 x 18 Deck Base (Case of 4)
Add to Quote to request pricing
Details
A pipestand with a strut and clamp pipe support system used for supporting roof mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a 16" length of strut which is mounted on the base. The pipes can then be fastened by using typical clamps locked to the strut. The pipe support base is made of polycarbonate resin and the strut is made of hot-dip galvanized steel.
More Information
| Weight | 50.000000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Quantity | Case of 4 |
| Base Material | Polycarbonate |
| Size | The deck base is 16" by 18" and has a maximum channel length of 16". |
| Maximum Pipe Clearance | Adjustable support height from 4.75" to 13.25". |
| Maximum Load Weight | Maximum load weight may not exceed 578 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
