SKU
A-12-BS-12
Brand:

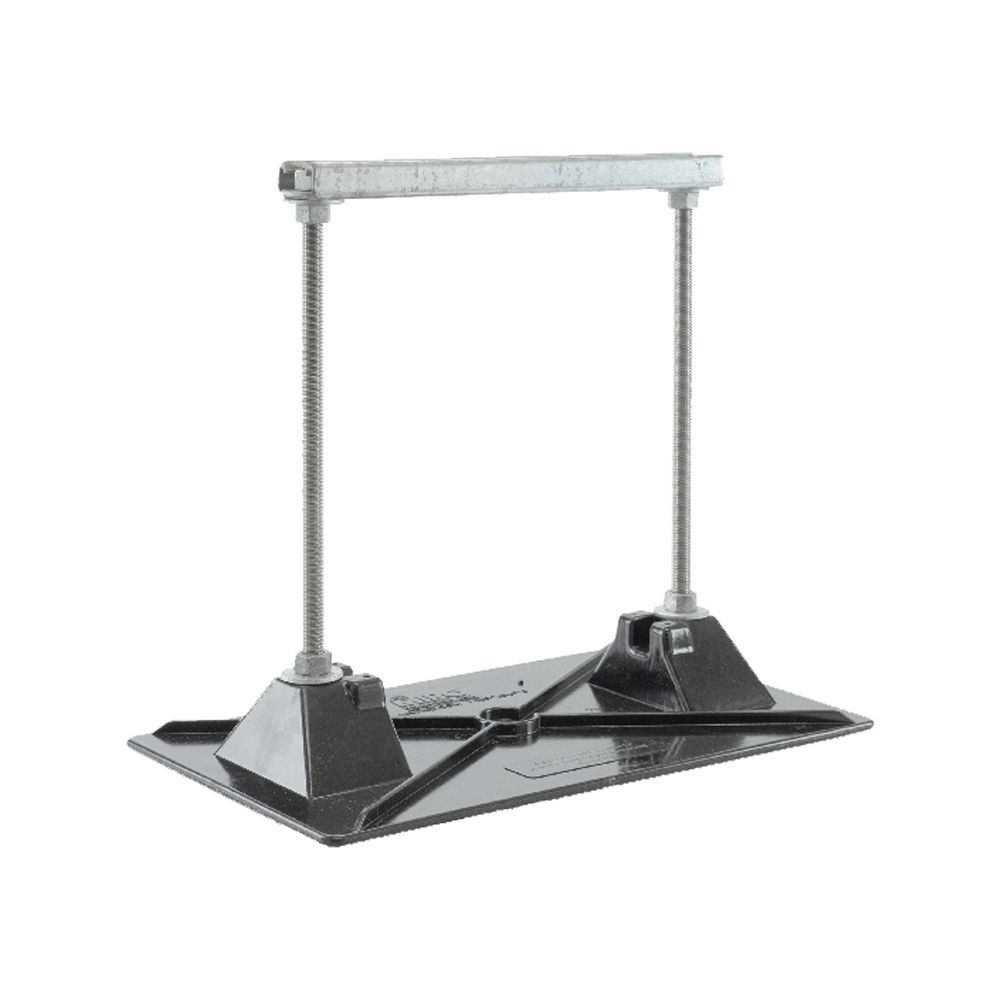

A-12-BS-12 Miro 12-Base Strut-12 Strut Rooftop Pipe Support - 9 x 15.25 Deck Base
12-Base Strut-12 Strut Rooftop Pipe Support - 9 x 15.25 Deck Base
Web Price
$61.25
Details
A pipe support with "strut" used to support roof-mounted electrical conduit, solar piping, gas pipes, and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a strut system which is made of hot-dip galvanized steel. The pipe support base is made of polycarbonate resin, and all other metal parts are made of hot-dip galvanized or stainless steel.
More Information
| Weight | 3.950000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Quantity | 1 |
| Base Material | Polycarbonate/Stainless Steel |
| Size | The deck base is 9" by 15.25" and has a maximum channel length of 12". |
| Maximum Pipe Clearance | Adjustable support height from 4.25" to 13.25". |
| Maximum Load Weight | Maximum load weight may not exceed 335 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
