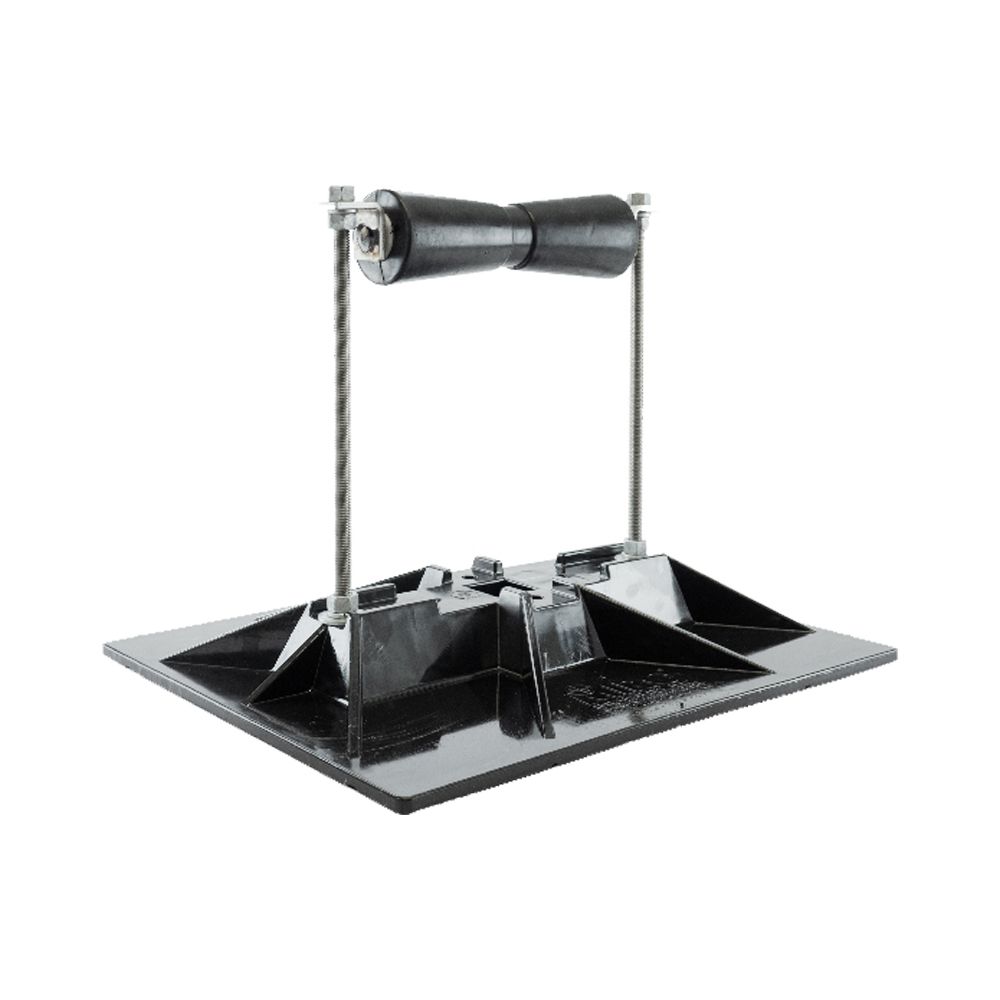

A-10-RAH-18 Miro 10-RAH-18 Rooftop Roller Pipe Support - 12" OD Pipes

Supports 10" pipe up to 18" above roof.

Web Price $274.02

Qty:

Save for Later

Ask us a question about this product

Details

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a rubber roller and a stainless steel axle.

Features

Optimally designed for a 10" pipe.
Maximum pipe OD (with insulation) is 13".
Adjustable from the factory set maximum height of 17-3/4" down to a minimum height of 6".
Maximum load is 803 lbs. (All-thread capacity) Make certain each pipe support is properly elevated to evenly distribute weight at all pipe support locations.
Unit weight: 15.96 lbs.
Recommended spacing is not to exceed 10' centers depending upon the load.
Base Material: Polycarbonate
Roller Material: Composite Rubber
5/8" all-thread and axle are stainless steel
All other metal parts are hot-dip galvanized

More Information

More Information
Weight	17.450000
Condition	New
Brand	MIRO Industries
Base Material	Polycarbonate
Size	The deck base is 19" by 23"
Maximum Pipe Size	12" outside diameter.
Maximum Pipe Clearance	Minimum clearance height of 6" and maximum clearance height of 18".
Maximum Load Weight	Maximum load weight may not exceed 960 lbs. per pipestand.
Spacing	Manufacturer's recommended spacing is not to exceed 8 foot centers depending upon the load.
