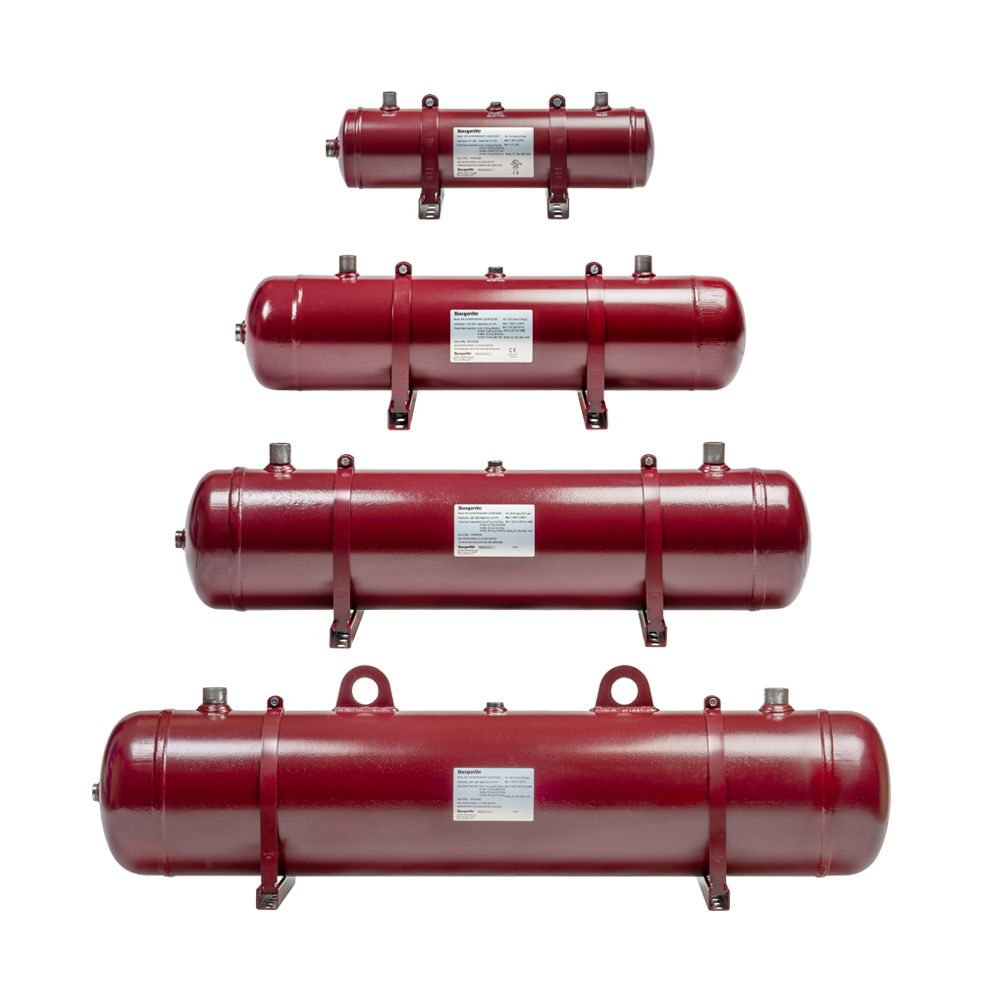

95206240 Temprite HR6-24 Horizontal Liquid Receiver

Temprite Liquid Receivers accommodate all refrigerants: carbon dioxide (CO2); hydrocarbons (HCs), including ethane, isobutane, and propane, and ammonia (NH3).SpecificationsModel: HR6-24Inlet/Outlet: 7/8" ODS*A Dim.: Diameter - 152 mm 6"B Dim.: 225 mm 8-7/8"C Dim.: Length - 608 mm 23-15/16"D Dim.: Distance Between Connections - 406 mm 16"E Dim.: Mounting Bolt Center - 203 mm 8"F Dim.: FPT* - 3/8"Internal Volume: 9.80 liter (2.59 gal.)Code of Construction: UL*FPT= Female Pipe Thread, ODS = Outside Diameter SolderPump Down CapacityModelR22R410AR134aR404AHR6-2410.3 kg 22.6 lb9.0 kg 19.8 lb10.4 kg 22.9 lb8.9 kg 19.6 lbAll pump-down capacities are calculated using 90% of receiver volume at 90°F..
