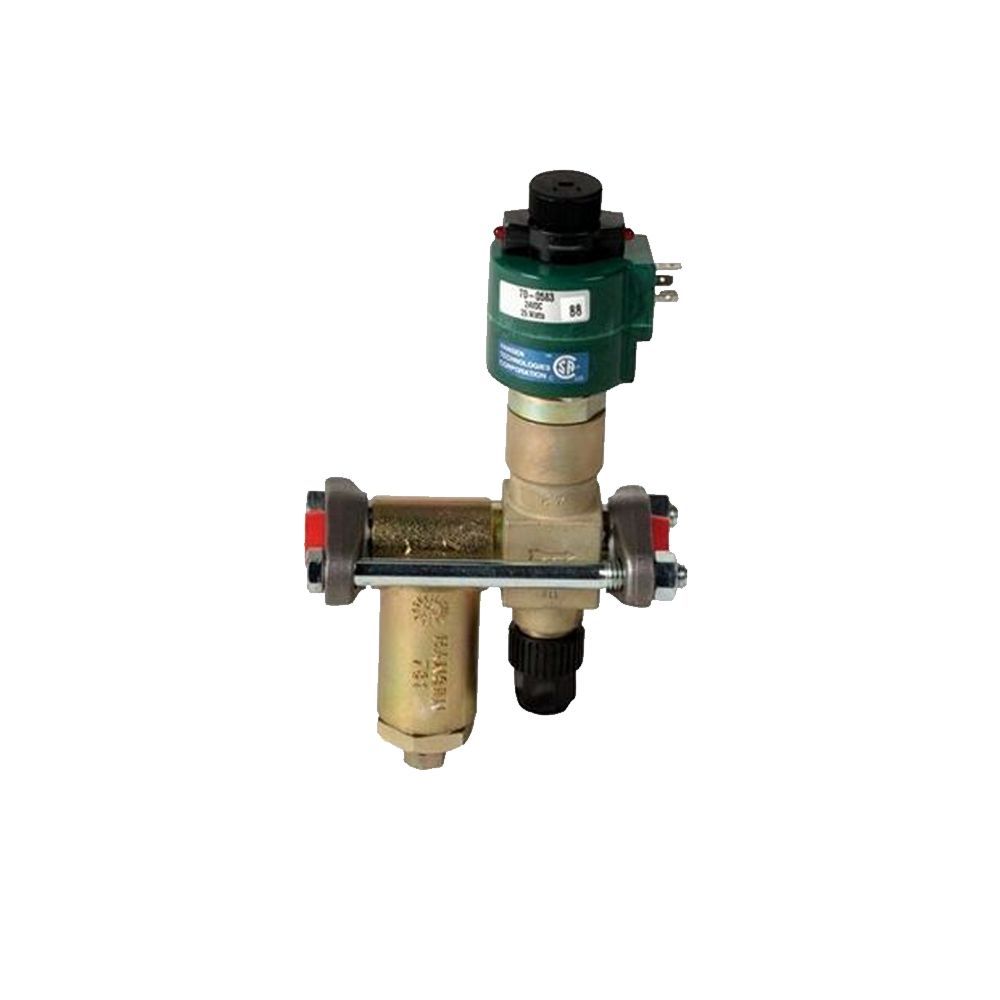

70-1152 Hansen MVP13, 1/2" Solenoid HS8 Piston, Shut-Off Valve, Handwheel, 3/4" Butt-Weld Connection

MVP Multi-Valve Platform Valve Station

Hansen Technologies introduces the Multi-Valve Platform (MVP). The MVP is a rugged, compact refrigerant control valve station. Ships pre-tested and assembled for quick and easy installation, requiring only two welds to complete most valve station applications. No disassembly is required. Hansen control valve functions include solenoid valve, all common Hansen pressure regulator functions (inlet, outlet, dual pressure) and sealed motor valve (1-1/2" and 2"port size). Can be confi gured using standard Hansen parts for most control functions.

ADVANTAGES

Installed cost savings is a huge advantage of the MVP valve. Faster installation, less pipe cutting, welding assembly time, insulation, and freight equal reduced costs. In addition, the compact valve body saves installation space and valve group weight. MVP valve includes six pressure taps to measure pressure at the inlet and outlet to the valve, as well as a 3/4" NPT side connection.

Features:

• Suitable for all Hansen approved refrigerants including R717, R134a, R404, R507 and CO2
• Parts and parts kits same as Hansen individual valves - saves on stocking spare parts and training
• Four to six control functions in one
• Pressure regulator function
• Manual opening function standard on solenoid and pressure regulating valves
• Full size 100 mesh strainer
• All stop valve stems are in vertical up position
• Optional sight glass liquid indicator
• Simple, identifi able confi guration
• Eliminates fl ange gasket leak potential

TECHNICAL SPECIFICATIONS

• Safe Working Pressure: 600 PSIG (40 bar)
• Temperature Range: -60° to 240°F (-50º to 115ºC)
• Materials
