6H-RH Miro Roller Hanger Support

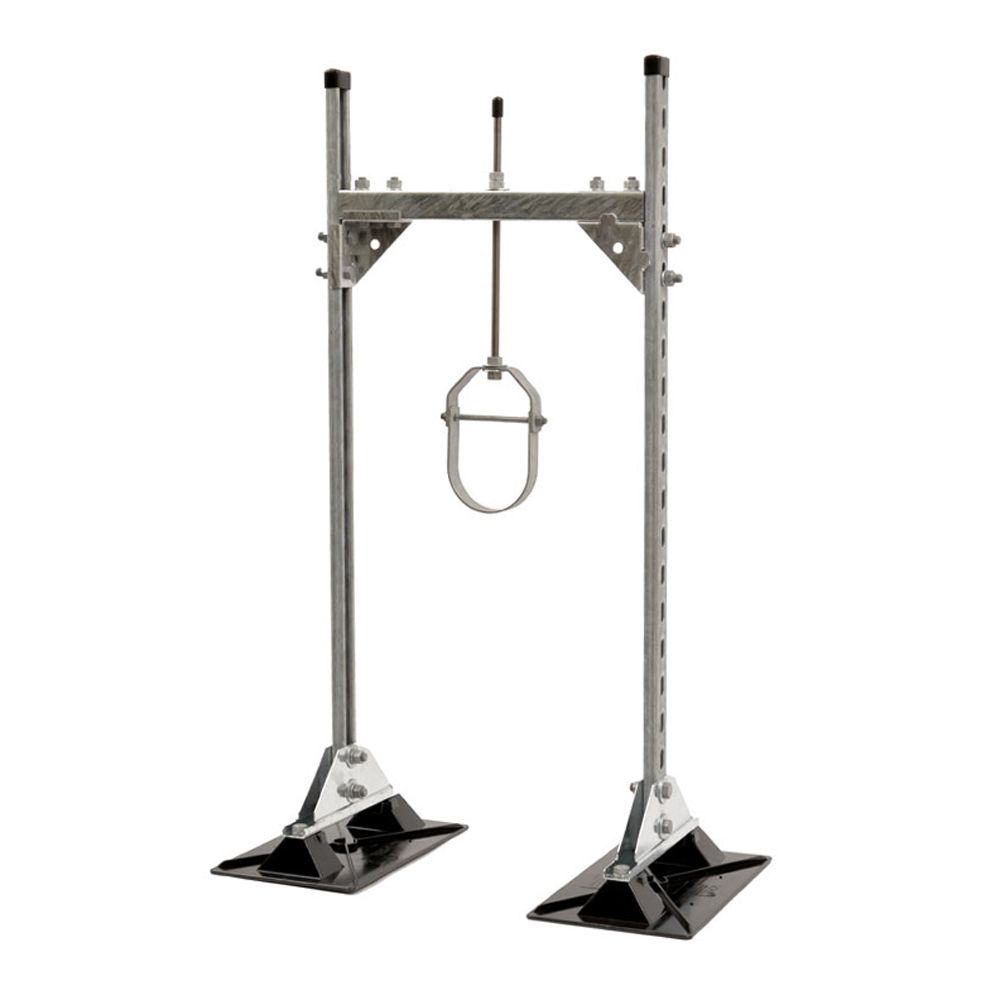

The 6-H support is a flexible and adjustable custom pipe support with several different configurations to fit your need. All 6-H designs allow for expansion and contraction of the pipe, absorbing the movement rather than transferring it to the roof surface, which can potentially cause damage. The standard 6-H support uses a clevis hanger, but can be configured with a roller chair or a roller hanger as well. All configurations can easily be adjusted up or down on site. Stainless steel and hot-dipped galvanized bases are available.

Accessories:

• 9 x 15-1/4 Support pad
• Cross bracing

Key Information:

• The 6H series support is designed and engineered to project specific requirements provided to MIRO Industries.
• Maximum loading from any MIRO base to the finished roof surface is not to exceed 3.0 psi (335 lbs/base) unless specifically allowed otherwise in the project specification.
• Deflection in the horizontal header bar is not to exceed the span length by 360 or 1/8"
• Frame is designed for gravity loading only.
• Recommended horizontal support spacing is not to exceed 10 feet centers or as required by the applicable design code.
• Contractor is to ensure each pipestand is properly elevated to evenly distribute loading at all pipestands.
• Frame is made with 12 ga slotted strut; Support legs are 7/8"x1-5/8" and header bar is typically 1-5/8" x 1-5/8".
• Base material is polycarbonate
• All metal parts are hot dip galvanized

To obtain pricing for the 6H-RH model, call us at 833-900-1499 and have the following information available:

1. Specify number of supports needed or provide a roof top duct layout drawing.
2. Type of pipe being supported
3. Pipe sizes (trade size)
4. Pipe content (liquid or gas)
5. Centerline distance between pipes (CL)
6. Height off roof (HOR)
7. Pipe insulation thickness
8. Preferred hanger type (Roller, Clevis or Trapeze)
