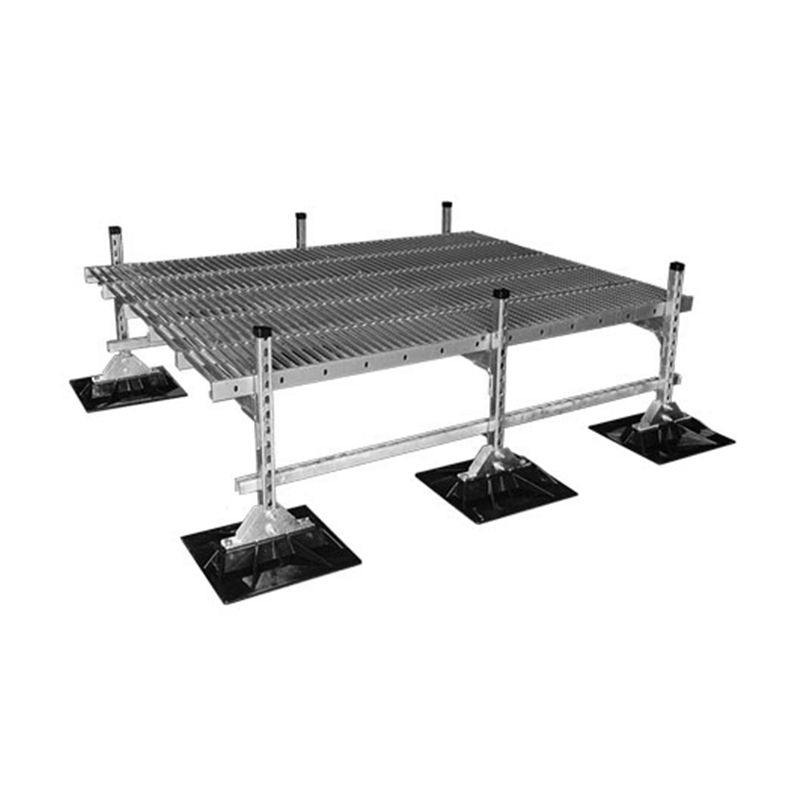

6-HD Miro Heavy Duty Mechanical Support with Decking

MIRO HD-Mechanical Supports are designed to elevate rooftop mechanical units, cabinets and other devices. The HD-Mechanical Support deck is 12" x 2-1/2" x 18 ga. planking. The supports are adjustable in height per the project requirements. All metal parts are hot-dip galvanized for outdoor weathering protection. The support bases are injection molded Polycarbonate.

Accessories:

• 9 x 15.25 Support pad
• Eternabond® 2-sided tape

Key Information:

• Designed to support mechanical units, cabinets and other devices.
• Designed to meet project specific dimensions with adjustability as specified.
• Support Deck is constructed of 12" x 2-1/2" x 18 ga. metal planking. (Bar Grating may be specified or required depending on loading and dimensional requirements)
• Support is designed to not exceed 3.0 psi to the finished roof surface under each base.
• Base Material: Polycarbonate
• All metal parts are either stainless steel, hot-dip galvanized or pre-galvanized.
• Can hold up to 1500 lbs if evenly distributed to each leg of the support.

To obtain pricing for the 6HD model, call us at 833-900-1499 and have the following information available:

1. Width and Length desired
2. Height off roof (HOR)
3. Weight of unit being supported
