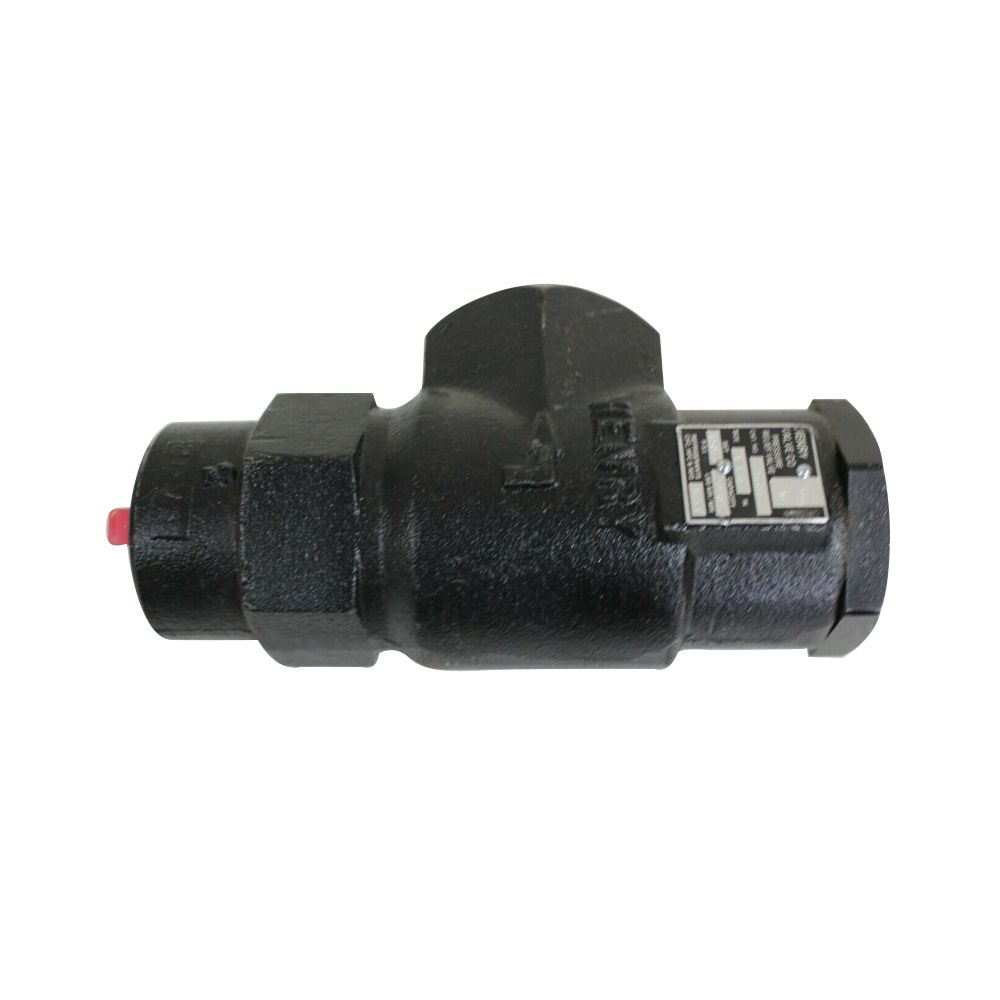

5604-225 Henry Pressure Relief Valve | 1-1/4” X 1-1/2” FPT
Relief valves in the types and sizes shown are constructed in accordance with the requirements of the ASME. These valves are also approved by many local refrigeration and air conditioning codes in the USA and Canada for the relief of excess pressure. In addition, these valves are stamped with ASME- UV symbol andNB to indicate National Board certification of capacities between150 P.S.I. and 450 P.S.I.
Features
Bodies: 5600 Series, Ductile Iron
Seat inserts, seat discs and main guides, piston stainless steel on 5600 series
Seat material: Teflon® or Neoprene
Connections: (NPTF) pipe threaded
Other component metal parts are steel
Set and sealed at the factory and furnished with nameplates stamped with catalog no., size, pressure setting, capacity and ASMEUV National Board symbol
Temperature rating: -20°F (-28°C) to +160°F (+71°C)
Protective lacquer finish on 5600 series
*Suitable for ammonia, HFC’s and CFC’s, refrigerants and other industrial fluids non-corrosive to steel and Teflon as indicated
Each valve has unique serialization for tagging requirements
More Information
More Information
Weight
6.500000
Manufacturer
Henry
Condition
New
Inlet
1-1/4"
Outlet Connection
1 1/2"
Body Material
Ductile Iron
Connection Style
FPT
Refrigerant Gas
Suitable for use with R-717, HCFC and HFC refrigerants
