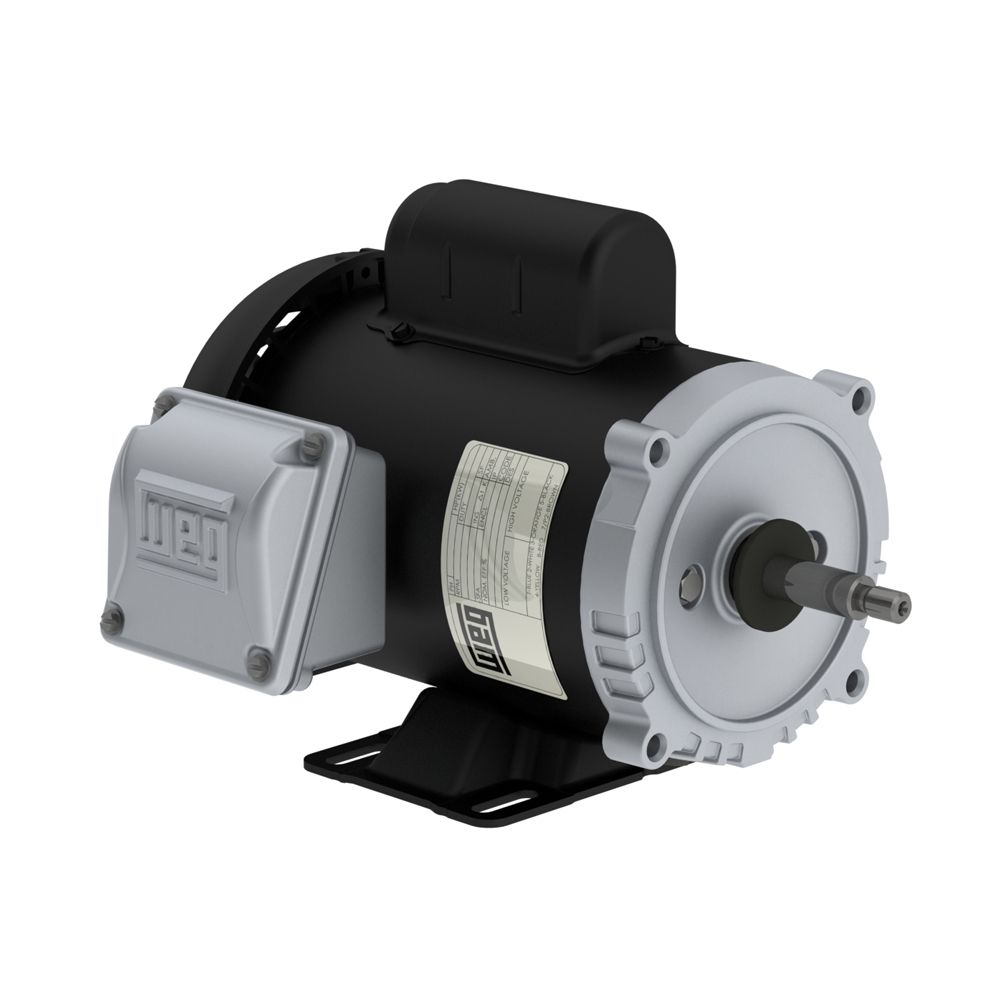

0.5HP, 3600 RPM, 1PH, 110-120V,208V,230V, W56J Frame, C-Face Flange, Foot Mount, TEFC, Jet Pump Motor
Web Price
$342.00
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame, aluminum flange and threaded shaft end, these versatile single-phase motors provide torque and durability for several applications.
More Information
| Weight | 24.540000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of Poles | 2 |
| Degree of Protection | IP55 |
| Synchronous Speed | 3600 rpm |
| Output Rating | 0.5 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Flange C |
| Terminal Box | Left position |
| Enclosure | IC411 -TEFC |
