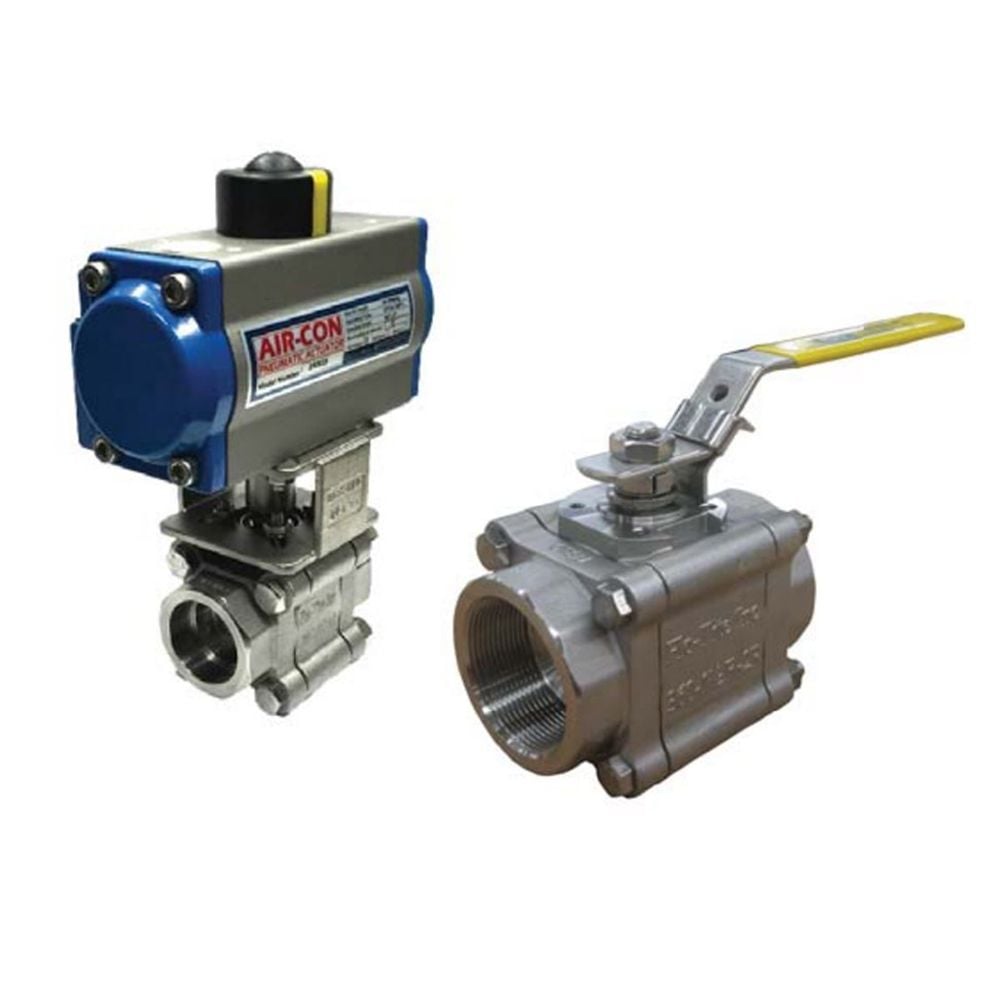

361-SS-1-RGG-L-025 Flo-Tite 1" Stainless Steel 3 Piece Ball Valves, Pro-Max 361

The Flo-Tite PRO-MAX Series is designed as a split body, three piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end to end in the pipeline.

Valve Features:

• Three piece body, standard port design
• Fire safe API 607 sixth edition
• 1/2" to 2" sizes
• Threaded, socket-weld ends
• Body: CF8M / WCB
• RTFE Seats or TFM
• Pressure Rating: 1/2"-1-1/4" 2000 psi, 1-1/2" - 2" 1500 psi, 150 PSI WSP

Design Advantages:

• ISO 5211 mounting pad provides for precise shaft alignment
• Improved seat material - extends cycle life and reduces torque
• Blow-out proof stem
• Fire safe to API 607 sixth edition
• Anti-static ground
• Fully contained body bolts
• Locking device standard
• Live-loaded stems

Application Standards:

• Body wall thickness - ASME B16.34
• NPT and socket weld ends - ASME B16.11
• Basic dimensions - ASME B16.34

Testing Standards:

• ASME B16.34, API 598
• NACE - MR-0175
• All valves are CE certified
