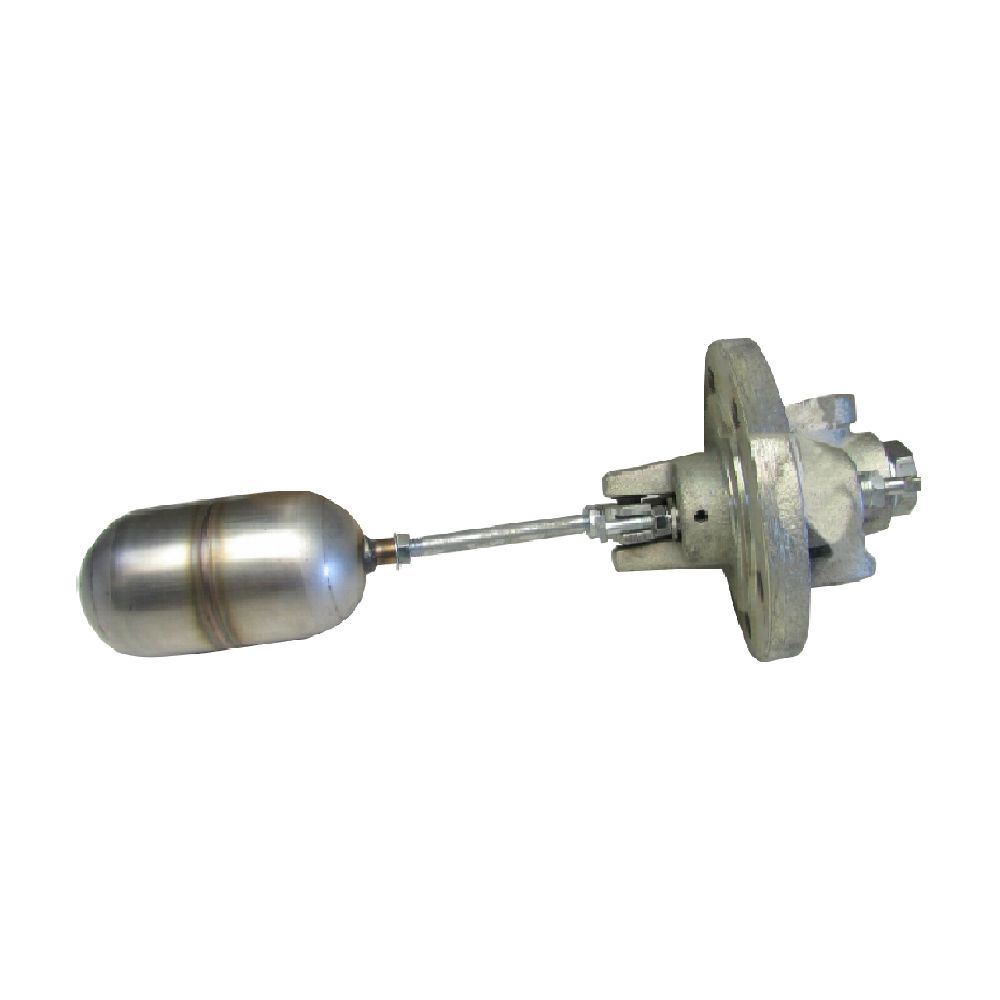

300H-series Phillips Low Side Float Valves Fixed Level - Direct Feed (Internal Mount)

The 300H Series internal mounting, fixed level, low side float valves are modulation type liquid level controls, designed primarily for use with ammonia.

List Price $1,190.00 List Price $1,190.00 As low as $795.71

Orifice Size

Refrigerant Type

Float Chamber

Qty:

Save for Later

Ask us a question about this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The 300H Series internal mounting, fixed level, low side float valves are modulation type liquid level controls, designed primarily for use with ammonia. The valves incorporate a replaceable cartridge that contains the working needle and seat. The cartridge can be removed without pump down of the surge drum or evaporator due to a secondary shutoff arrangement built into the valve. When used in halocarbon systems, these valves can be supplied with heavier float balls. When utilizing welding flanges, to directly mount these valves to a vessel, special consideration must be given to ensure that enough clearance is allowed for the valve’s float ball to move up and down with a rise/fall in liquid level

More Information

More Information
Manufacturer	Phillips
Condition	New
