SKU
.2518OS1ASPRB48Z-S
Brand:

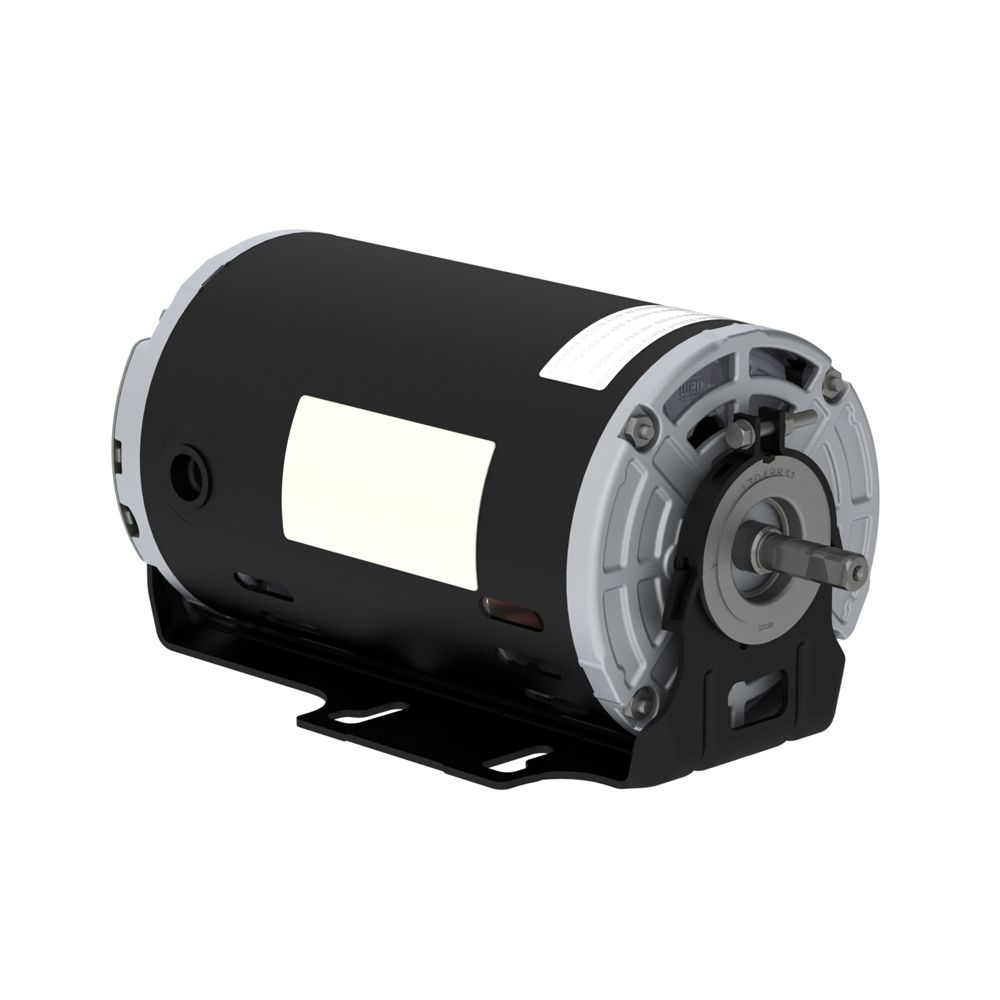

.2518OS1ASPRB48Z-S WEG Motor 0.25HP 4P 48Z WCA2 Rolled Steel Foot-mounted
.25HP, 1800 RPM, 1PH, 110-120V, 48Z Frame, Standard Flange, Resilient Mount, Open, General Purpose Motor
Add to Quote to request pricing
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel Single Phase motor has good thermal performance and easy installation and maintenance. Because of their high starting torque, they are particularly well-suited for heavy starting loads.
More Information
| Weight | 22.010000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 115 V |
| Number of Poles | 4 |
| Synchronous Speed | 1800 rpm |
| Output Rating | 0.25 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Without Flanges |
| Terminal Box | Without Terminal Box |
| Enclosure | IC01 - ODP |
