148F3011 Danfoss, DSV2 FD32/FD32, DUAL STOPVALVE+Kit

DSV2 FD32/FD32, DUAL STOPVALVE+KIT

Web Price $1,566.95 List Price $2,314.82 List Price $2,314.82

Qty:

Add to My Parts

Details

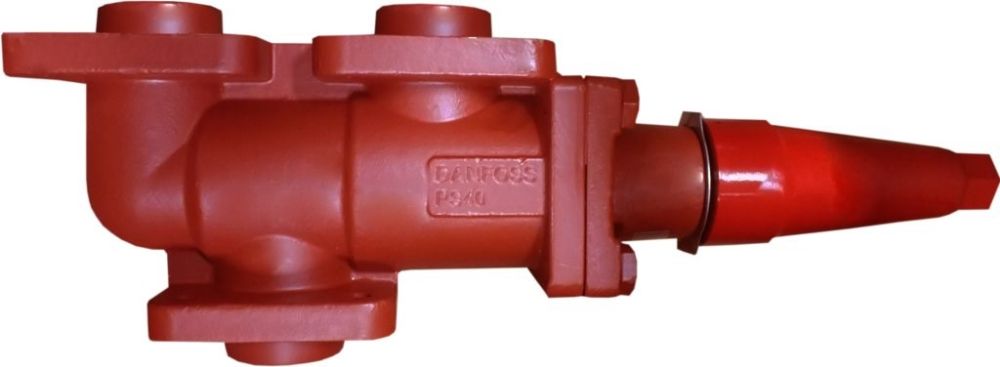

DSV 1 and DSV 2 are change-over valves, which are designed to meet all industrial refrigeration application requirements. DSV valves are designed specifically for use with double safety valve systems. The valves are designed to give favourable flow characteristics and are easy to dismantle for servicing. The valve cone is designed to ensure perfect closing, even with minimum torque the valve will close effectively. All valves are equipped with vented cap and nipple/flange connections, which permit easy inspection or replacement of safety valves.

More Information

More Information
Weight	25.570000
Condition	New
Brand	Danfoss
Minimum Temperature Range C	-50 °C
Minimum Temperature Range F	-58 °F
Maximum Temperature Range F	212 °F
Maximum Temperature Range C	100 °C
Inlet Connection Type	Weld flange
Maximum Working Pressure (PSIG)	580 psig
Maximum Working Pressure (BAR)	40 bar
Outlet Connection	1-1/4"
Inlet	1-1/4"
GTIN/UPC	5702428242486
