Weight | 5.470000 |
---|---|
Manufacturer | Danfoss |
Condition | New |
EAN | 5702428978514 |
Body Material | Stainless Steel |
Connection Standard | EN 10220 |
Color Paint | Reddish Brown |
Connection Material | Stainless Steel |
Direction | Straightway |
Equipment | Cap |
Flow Direction | Bi-flow |
Flow Direction Indicator | Embossed 1-way arrow |
Fluid Group | I |
Kv value [m³/h] | 10.2 m³/h |
Maximum Working Pressure (BAR) | 52 bar |
Maximum Working Pressure [PSIG] | 754 psig |
Neck | Long |
Parts Program Name | SVA-S SS / SVA-L SS |
Inlet Connection | 3/4" (20 mm) BW |
Outlet Connection | 3/4" (20 mm) BW |
Product Accessories | SVL Flexline accessories |

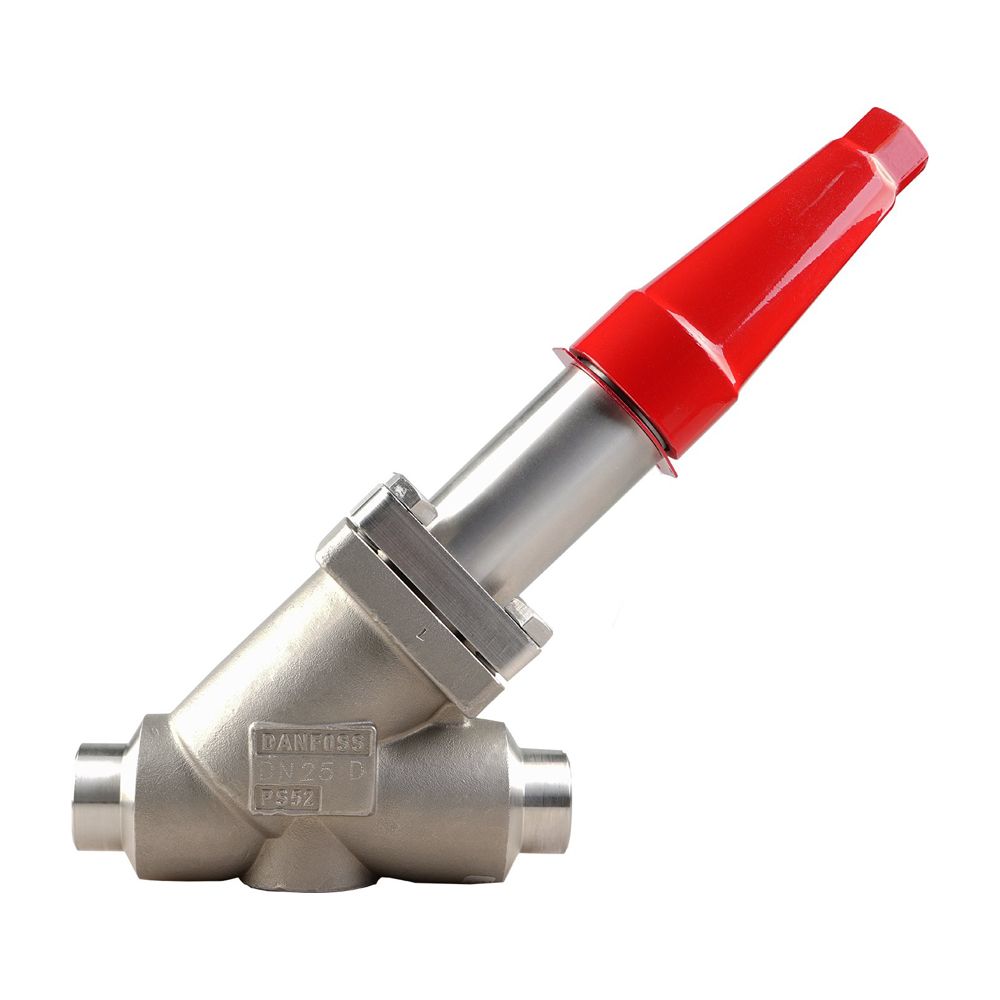

Product Description | Stop Valve |
Product Family Name | SVA SS Angle |
Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R1270 R1336mzz(Z) R134a R152a R22 R23 R236fa R32 R401A R402A R402B |
Serviceable | SVL Flexline Spare Parts |
Temperature range [°C] [Max] | 150°C |
Temperature range [°C] [Min] | -60°C |
Temperature range [°F] [Max] | 302°F |
Temperature Range [°F] [Min] | -76°F |
Type | SVA-L SS 20 |
Valve Version | Standard version |
