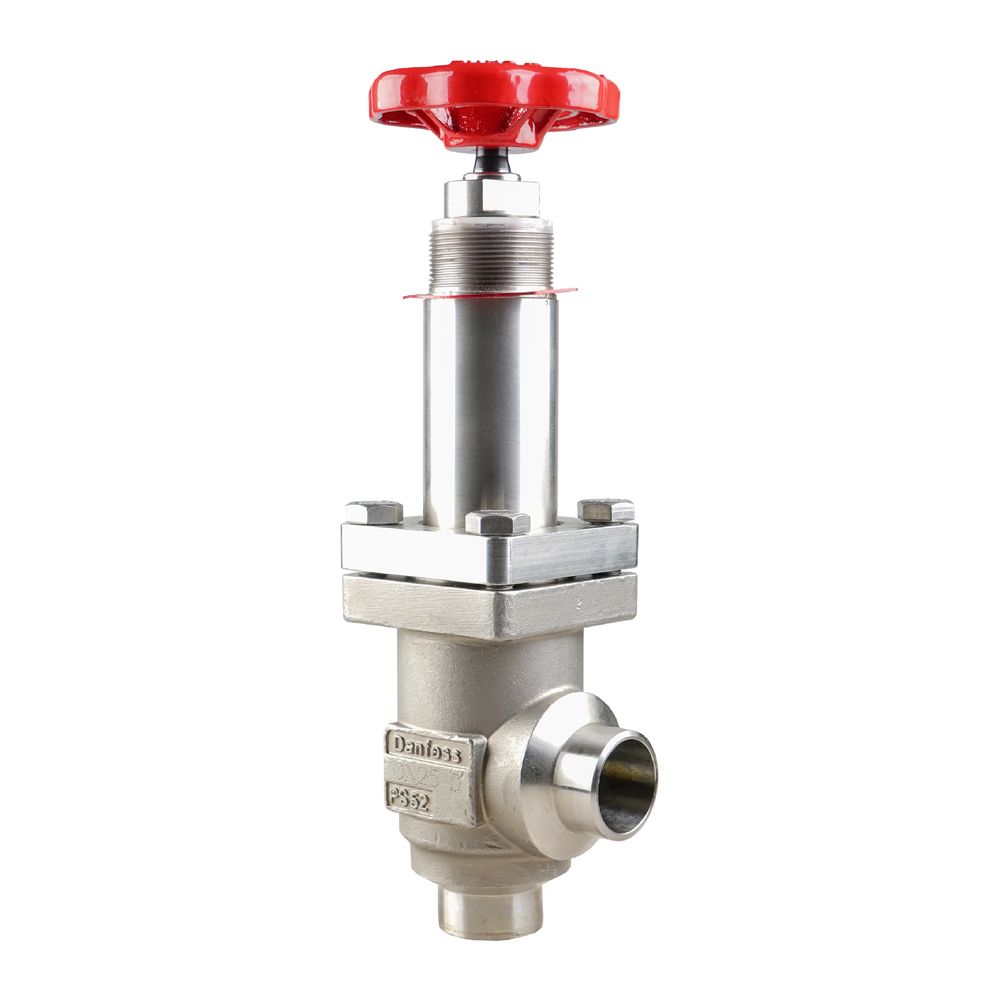

148B6550 Danfoss SVA-L SS 200 Shut-Off D Angle Stop Valve Handwheel, PS52

SVA-L SS 200 Shut-Off D Angle Stop Valve Handwheel, PS52

List Price $455.95 List Price $455.95 Web Price $430.88

Qty:

Details

SVA-L SS 200 Shut-Off D Angle Stop Valve Handwheel, PS52

More Information

More Information
Weight	5.090000
Brand	Danfoss
Condition	New
EAN	5702428978385
Body Material	Stainless Steel
Connection Standard	EN 10220
Color Paint	Reddish Brown
Connection Material	Stainless Steel
Direction	Angleway
Equipment	Handwheel
Flow Direction	Bi-flow
Flow Direction Indicator	Embossed 1-way arrow
Fluid Group	I
Kv value [m³/h]	14.6 m³/h
Maximum Working Pressure (BAR)	52 bar
Maximum Working Pressure [PSIG]	754 psig
Neck	Short
Parts Program Name	SVA-S SS / SVA-L SS
Inlet Connection	3/4" (20 mm) BW
Outlet Connection	3/4" (20 mm) BW
Product Accessories	SVL Flexline accessories
Product Description	Stop Valve
Product Family Name	SVA SS Angle
Refrigerants	R113 R114 R1233zd(E) R1234yf R1234ze(E) R1270 R1336mzz(Z) R134a R152a R22 R23 R236fa R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 R290 RE170 R507A R1150 R125 R170 R227ea R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A
Serviceable	SVL Flexline Spare Parts
Temperature range [°C] [Max]	150°C
Temperature range [°C] [Min]	-60°C
Temperature range [°F] [Max]	302°F
Temperature Range [°F] [Min]	-76°F
Type	SVA-L SS 20
Valve Version	Standard version

Resources

Danfoss Data Sheet Shut-off valve Type SVA-S SS and SVA-L SS (Size: 3.8 MB)
