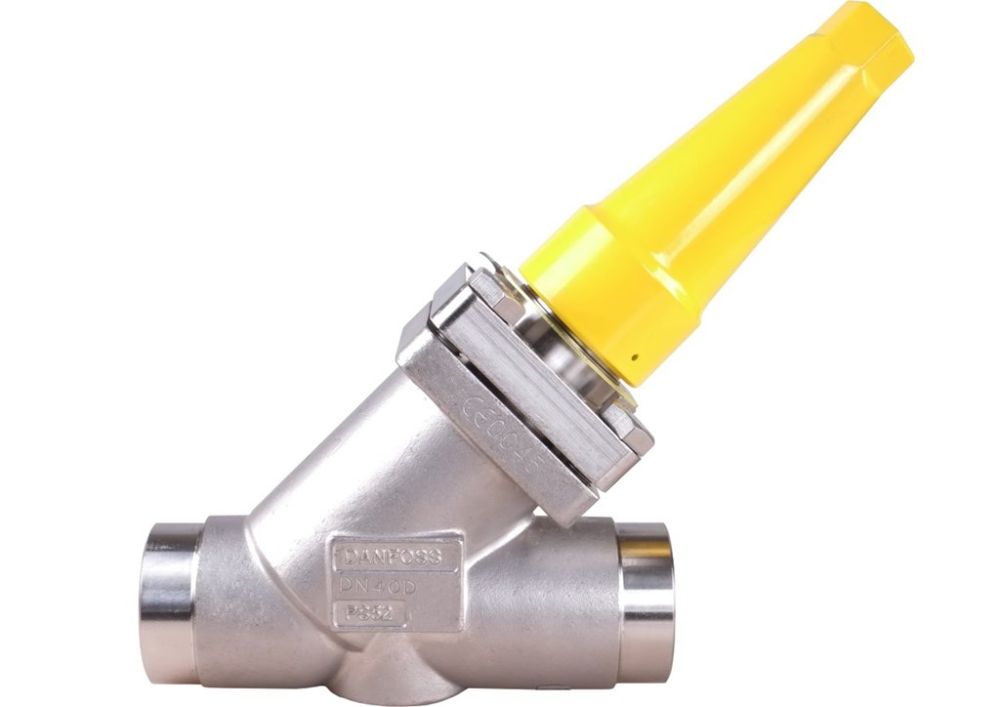

148B6485 Danfoss Hand expansion valve (stainless steel) type REG-SA SS 25, globe, 1 ANSI Sch 40 Butt Weld cone A

Hand expansion valve (stainless steel) type REG-SA SS 25, globe, 1" ANSI Sch 40 Butt Weld, cone A

Add to Quote to request pricing

Details

The stainless steel REG-SA SS and REG-SB SS are angleway and straightway hand-operated regulating valves, which act as normal shut-off valves in closed position. REG-SA SS with the A cone is designed for expansion lines. REG-SB SS with a B cone is designed for regulating purposes e.g. liquid lines. The valves are designed to meet the strict quality requirements on refrigerating installations specified by the international classification societies and are carefully designed to present favourable flow conditions and accurate linear characteristics.

More Information

More Information
Weight	9.060000
Condition	New
Brand	Danfoss
Port Size	1"
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range F	302 °F
Maximum Temperature Range C	150 °C
Inlet Connection Type	Butt Weld
Refrigerants	Applicable to HCFC, HFC, R717 (Ammonia), R744 (CO2), Propane, Butane, Iso-Butane and Ethane.
Maximum Working Pressure (PSIG)	754 psig
Maximum Working Pressure (BAR)	52 bar
Outlet Connection	1"
Inlet	1"
Type	REG-SA SS 25
GTIN/UPC	5702428990257
