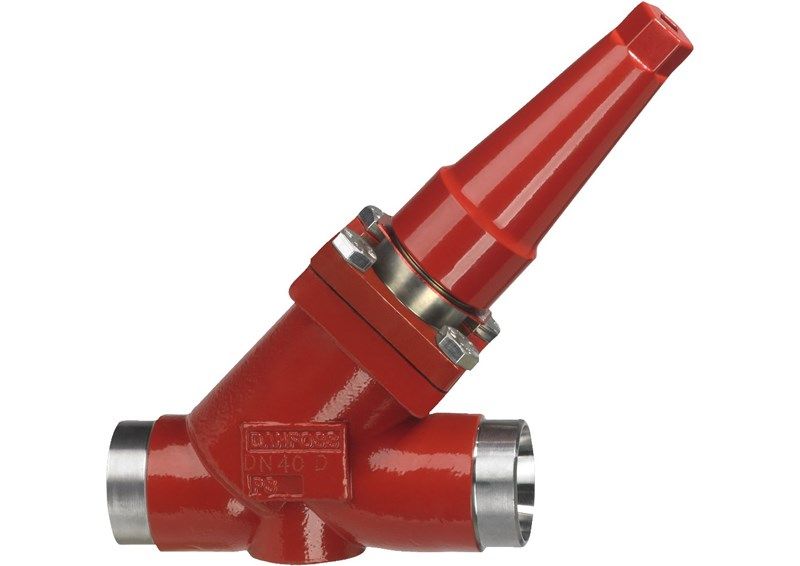

148B5733 Danfoss Shut-off valve, SVA-S 50, Globe 2 SOC w/ seal cap

List Price $499.96 List Price $499.96 Web Price $390.89

Qty:

Save for Later

Estimate shipping for this product

Country

State/Province

Zip/Postal Code

Ask us a question about this product

Details

Danfoss offers a very wide range of shut-off valves for all refrigeration applications. From small BM valves for fluorinated refrigerants to huge SVA valves for HCFC, HFC, Ammonia, CO2 and flammable refrigerants, the range of shut-off valves also comprises drain valves and gauge valves. Danfoss Shut-off valves are available as complete products or as parts programme, consisting of separate valve bodies, function modules and top parts.Refrigerants:R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507A

More Information

More Information
Weight	15.000000
Condition	New
Brand	Danfoss
Port Size	2"
EAN	5702428468176
Body Material	Steel
Cv Value [gal/min]	75.4 gal/min
Kv value [m³/h]	65 m³/h
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range F	302 °F
Maximum Temperature Range C	150 °C
Inlet Connection Type	Socket weld
Valve Body Type	Globe
Maximum Working Pressure (PSIG)	754 psig
Maximum Working Pressure (BAR)	52 bar
Product Series	SVA-S
Outlet Connection	2"
Inlet	2"
Type	Standard
GTIN/UPC	5702428468176
Width	12
Height	5
Length	16
