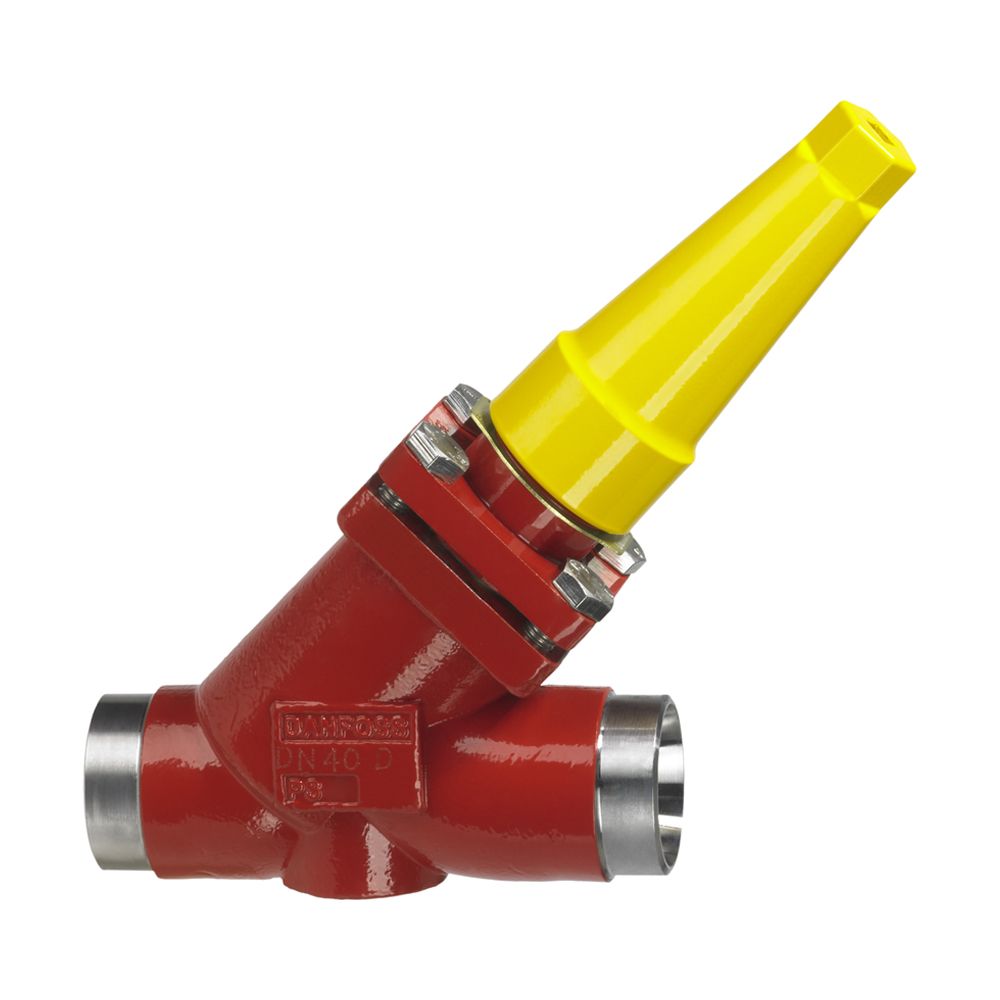

148B5417 Danfoss REG-SB 25 Hand Operated Regulating Valve, PS52

REG-SB 25 Hand Operated Regulating Valve, PS52

Add to Quote to request pricing

Qty:

Details

REG-SB 25 Hand Operated Regulating Valve, PS52

More Information

More Information
Weight	8.550000
Brand	Danfoss
Condition	New
EAN	5702428474306
Body Material	Steel
Connection Standard	ANSI/ASME B1.20.1
Color Paint	Reddish Brown
Connection Material	Steel
Direction	Straightway
Equipment	Cap
Flow Direction Indicator	Embossed 1-way arrow
Flow area (in2)	0.823 in²
Flow area (mm2)	531 mm²
Fluid Group	I
Kv value [m³/h]	20 m³/h
Maximum Working Pressure (BAR)	52 bar
Maximum Working Pressure [PSIG]	754 psig
Neck	Short
Parts Program Name	REG-SA / REG-SB
Inlet Connection	1" (25 mm) NPT
Outlet Connection	1" (25 mm) NPT
Product Accessories	SVL Flexline accessories
Product Description	Hand Regulating Valve
Product Family Name	REG Straight
Refrigerants	R134a R22 R290 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R600 R600a R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A
Serviceable	SVL Flexline Spare Parts
Temperature range [°C] [Max]	150°C
Temperature range [°C] [Min]	-60°C
Temperature range [°F] [Max]	302°F
Temperature Range [°F] [Min]	-76°F
Type	REG-SB 25
Valve Version	Standard version
