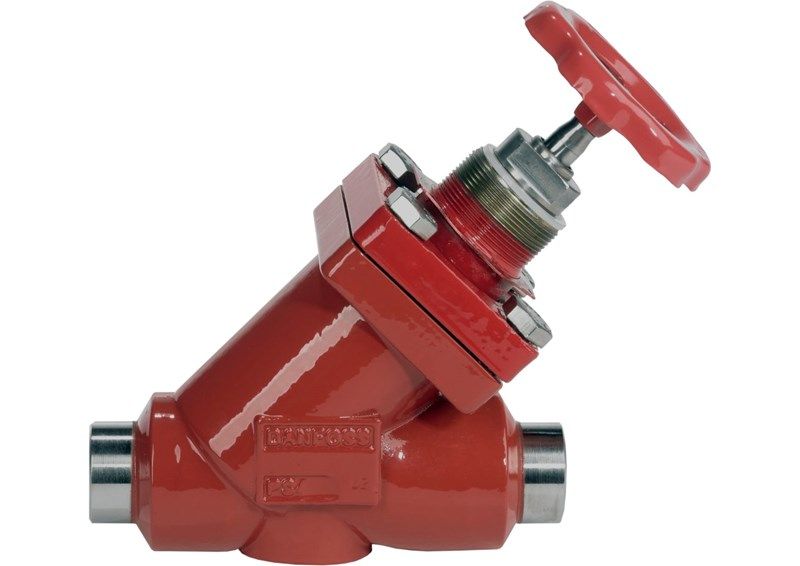

148B5332 Danfoss Shut-off valve, SVA-S 20, Globe 3/4" SOC w/ handwheel

Danfoss SVA-S 20 shut-off valve, globe 3/4" socket weld, with handwheel.

List Price $241.25 List Price $241.25 Web Price $176.92

Qty:

Save for Later

Ask us a question about this product

Details

Danfoss offers a very wide range of shut-off valves for all refrigeration applications. From small BM valves for fluorinated refrigerants to huge SVA valves for HCFC, HFC, Ammonia, CO2 and flammable refrigerants, the range of shut-off valves also comprises drain valves and gauge valves. Danfoss Shut-off valves are available as complete products or as parts programme, consisting of separate valve bodies, function modules and top parts.Refrigerants:R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507A

More Information

More Information
Weight	4.400000
Condition	New
Brand	Danfoss
Port Size	3/4"
EAN	5702428467278
Body Material	Steel
Cv Value [gal/min]	8.12 gal/min
Kv value [m³/h]	7 m³/h
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range F	302 °F
Maximum Temperature Range C	150 °C
Inlet Connection Type	Socket weld
Valve Body Type	Globe
Maximum Working Pressure (PSIG)	754 psig
Maximum Working Pressure (BAR)	52 bar
Product Series	SVA-S
Outlet Connection	3/4"
Inlet	3/4"
Type	Standard
GTIN/UPC	5702428467278
