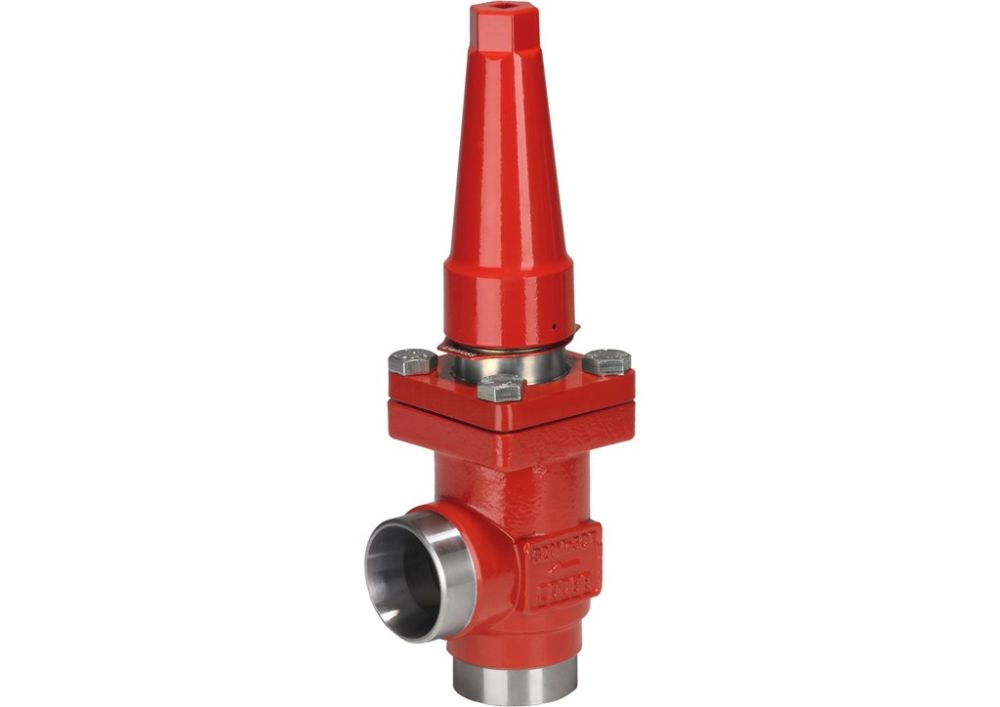

148B5325 Danfoss Shut-off valve, SVA-S 20, Angle 3/4; FPT w/ seal cap

Danfoss SVA-S 20 shut-off valve, angleway, 3/4" FPT with seal cap.

List Price $241.25 List Price $241.25 Web Price $182.22

Qty:

Save for Later

Ask us a question about this product

Details

Danfoss offers a very wide range of shut-off valves for all refrigeration applications. From small BM valves for fluorinated refrigerants to huge SVA valves for HCFC, HFC, Ammonia, CO2 and flammable refrigerants, the range of shut-off valves also comprises drain valves and gauge valves. Danfoss Shut-off valves are available as complete products or as parts programme, consisting of separate valve bodies, function modules and top parts.Refrigerants:R113R114R1233zd(E)R1234yfR1234ze(E)R125R1270R1336mzz(Z)R134aR152aR22R227eaR23R236faR290R32R401AR402AR402BR404AR407AR407BR407CR407FR407HR408AR409AR410AR417AR421AR422AR422BR422DR427AR438AR444BR447AR448AR449AR449BR450AR452AR454BR455AR502R503R513AR600R600aR717R744RE170R507A

More Information

More Information
Weight	3.100000
Condition	New
Brand	Danfoss
Port Size	3/4"
EAN	5702428467193
Body Material	Steel
Cv Value [gal/min]	11.6 gal/min
Kv value [m³/h]	10 m³/h
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range F	302 °F
Maximum Temperature Range C	150 °C
Inlet Connection Type	NPT
Valve Body Type	Angle
Maximum Working Pressure (PSIG)	754 psig
Maximum Working Pressure (BAR)	52 bar
Product Series	SVA-S
Outlet Connection	3/4"
Inlet	3/4"
Type	Standard
GTIN/UPC	5702428467193
