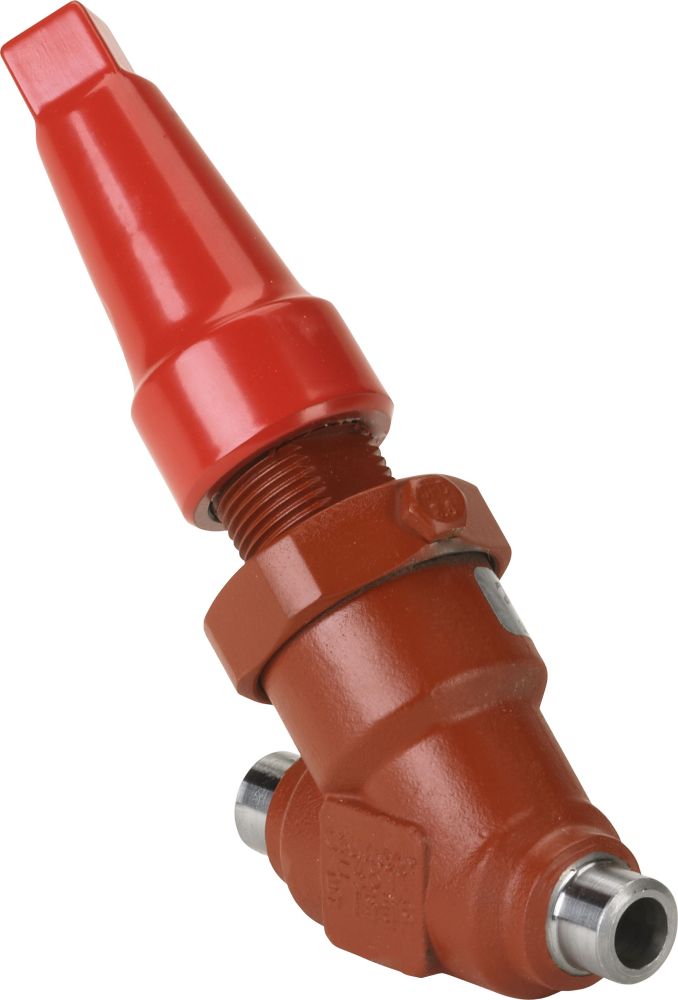

SVA-S 10 A STR STOP VALVE CAP PS52
Add to Quote to request pricing
Details
SVA shut-off valves are available in angleway and straightway versions and with Standard neck (SVA-S) and Long neck (SVA-L) The shut-off valves are designed to meet all industrial refrigeration application requirements and are designed to give favourable flow characteristics and are easy to dismantle and repair when necessary. The valve cone is designed to ensure perfect closing and withstand a high system pulsation and vibration, which can be present specifically in the discharge line.
More Information
| Weight | 4.410000 |
|---|---|
| Brand | Danfoss |
| Condition | New |
| Inlet | 3/8" |
| Outlet Connection | 3/8" |
| Connection | 3/8" |
| Body Material | Steel |
| Connection Material | Steel |
| Inlet Connection Type | Butt weld |
| Outlet Connection Type | Butt weld |
| Minimum Temperature Range C | -60 °C |
| Minimum Temperature Range F | -76 °F |
| Maximum Temperature Range C | 150 °C |
| Maximum Temperature Range F | 302 °F |
| Maximum Working Pressure (BAR) | 52 bar |
| Maximum Working Pressure (PSIG) | 754 psig |
| Handle Style | Seal Cap |
| Product Series | SVA-S |
