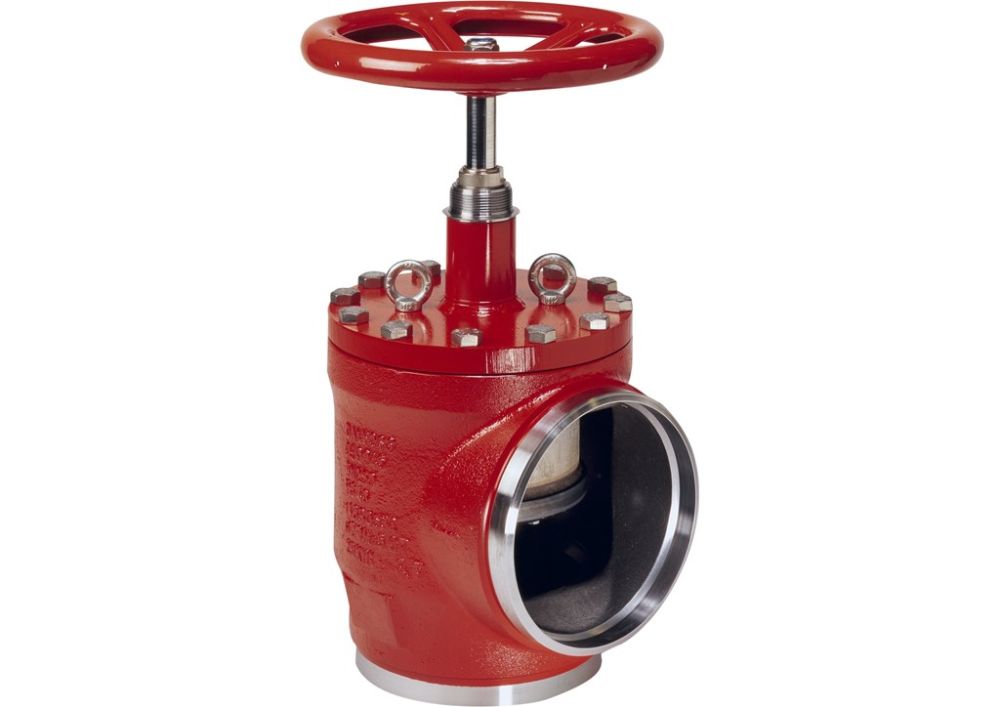

148B3767 Danfoss Shut-off valve, SVA-DH 250, Angle 10 BW w/ handwheel

Shut-off valve - SVA-DH 250, Angle, 10" BW w/ handwheel

List Price $11,527.13 List Price $11,527.13 Web Price $9,463.06

Qty:

Save for Later

Ask us a question about this product

Details

Danfoss offers a very wide range of shut-off valves for all refrigeration applications. From small BM valves for fluorinated refrigerants to huge SVA valves for HCFC, HFC, Ammonia, CO2 and flammable refrigerants, the range of shut-off valves also comprises drain valves and gauge valves. Danfoss Shut-off valves are available as complete products or as parts programme, consisting of separate valve bodies, function modules and top parts.

More Information

More Information
Weight	385.810000
Brand	Danfoss
Condition	New
Port Size	10"
Inlet	10"
Outlet Connection	10"
Connection	10"
Inlet Connection Type	Butt Weld
Outlet Connection Type	Butt Weld
Valve Body Type	Angle
Minimum Temperature Range C	-60 °C
Minimum Temperature Range F	-76 °F
Maximum Temperature Range C	150 °C
Maximum Temperature Range F	302 °F
Maximum Working Pressure (BAR)	52 bar
Maximum Working Pressure (PSIG)	754 psig
Handle Style	Handwheel
Product Series	SVA-S
