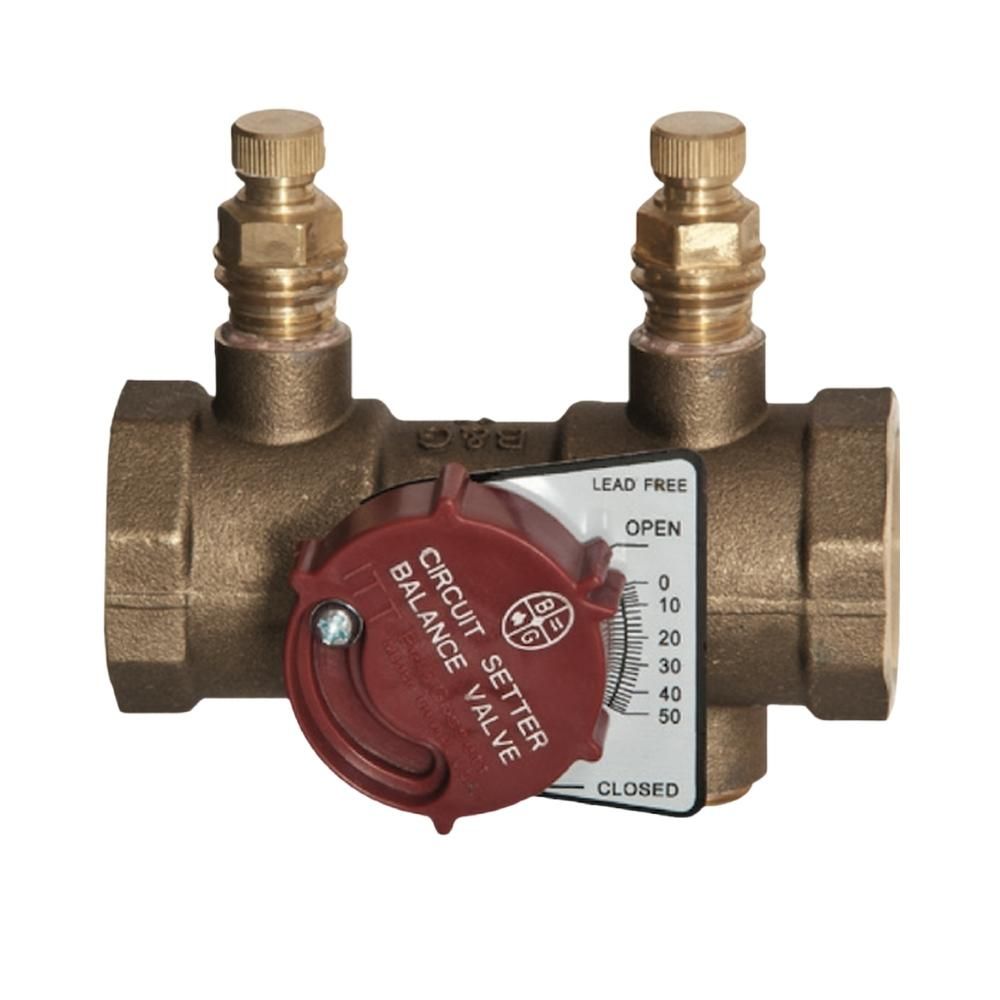

117403LF Bell & Gossett 1-1/2" FSWT Circuit Setter Plus Balance Valve (Lead Free)

The Bell & Gossett Circuit Setter Plus is a calibrated balance valve designed for pre-set proportional system balance. Since its introduction to the HVAC industry in 1968, the Bell & Gossett Circuit Setter has set the standard for proportionally balancing hydronic HVAC systems. This system balance method, developed by Bell & Gossett, assures optimum system flow balance at minimum pump operating horsepower. Valves can simply be pre-set using the B&G Circuit Setter Balance Valve Calculator, curve booklet G10091, or the System Syzer application for iPhone, iPad, or PC.

Circuit Setters are available in a wide range of sizes and styles to meet all your system demands. Brass valves, in sizes 1/2” through 3”, utilize a full port ball valve with calibrated nameplate and feature a memory stop and two integrated pressure/temperature ports for easy ?P measurement. Additionally, All brass Circuit Setters are CSA certified to be in compliance with the low lead requirements of California, Vermont, Maryland, Louisiana, and NSF//ANSI 372.

For larger sized systems, Circuit Setters are available in ball style (2 1/2” – 4”) and globe style (4” – 12”). Our globe style valves include a multi-turn stem, calibrated nameplate, memory button for easy re-setting of the valve position after shut-off/isolation, and integrated pressure/temperature ports.

Features and Benefits:;

• Lead Free Brass Design
  • Brass models 1/2” through 3” suitable for use in all potable water systems
    • AB1953 Certified
    • Vermont S152 Certified
    • ANSI/NSF-61 Annex G Compliant
• Calibrated Accurate Flow Control and Measurement
• Sizes from 1/2” – 12”
  • Ball valve style 1/2” through 4”
  • Globe valve style 4” – 12”
• Multiple End Connections Available
  • Union – Upstream (1/2” – 2”)
  • Sweat (Female) and NPT (Male and Female) (1/2” – 2”)
  • Flanged 2 1/2” – 12”
  • Grooved 4” – 12”
• Flow Range up to 7,200 GPM
• Pre-Balance Design Capability
• Integrated Valved Readout Ports
