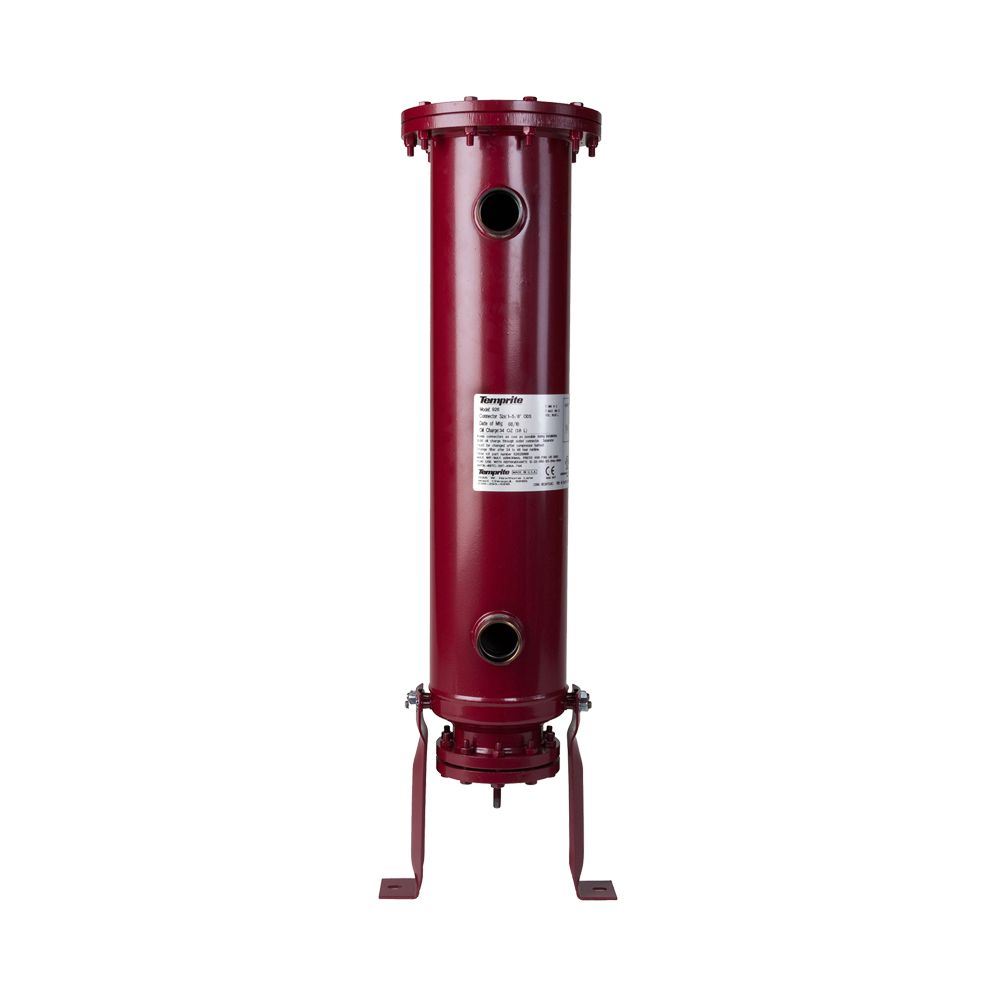

092600000 Temprite 926 Oil Separator with Filter Kit

The 920 and 920R Series is compatible with ammonia (NH3) and subcritical CO2 and designed for 44.8 bar (650 PSI).The 920 and 920R Series of coalescent oil separators are designed to make refrigeration systems clean and green by lowering energy costs and reducing carbon emissions.Higher efficiency means better heat transfer through the coils, translating into significant kW savings. The 920 and 920R Series is not dependent on velocity for efficiency. Coalescent oil separators maintain the same level of effectiveness down to 20% of maximum flow.Part #Model #Oil Conn. SizeA Dim.B Dim.C Dim.D Dim.E Dim.F Dim.G Dim.Oil Charge Amt.0926000009263/8″ SAE*1-5/8″ ODS* 41.28 mm29-7/16″ 748 mm35″ 889 mm12″ 305 mm6″ 152 mm8-1/2″ 216 mm4-1/2″ 114 mm34 oz. 1 Liters*SAE = 45° Flare Connection, ODS = Outside Diameter SolderTHE CONNECTIONS ON THE OIL SEPARATOR MUST BE THE SAME SIZE AS (OR LARGER THAN) THE DISCHARGE LINE SIZE.NOTE: All separators can be purchased with a Clean-Up® Filter installed by adding CNF to the end of the part number. When ordering with the Clean-Up® Filter installed you do not get a spare filter. Call for pricing and lead times.300/900/920/920R Series NotesFor applications other than reciprocating and scroll compressors, (screw type, two-stage) please contact Temprite engineering.920/920R Series NotesAll products rated for subcritical CO2applications and R-410A applications (Max 650 PSIG).The “R” stands for “Reservoir” and does not have a float to control oil return.
