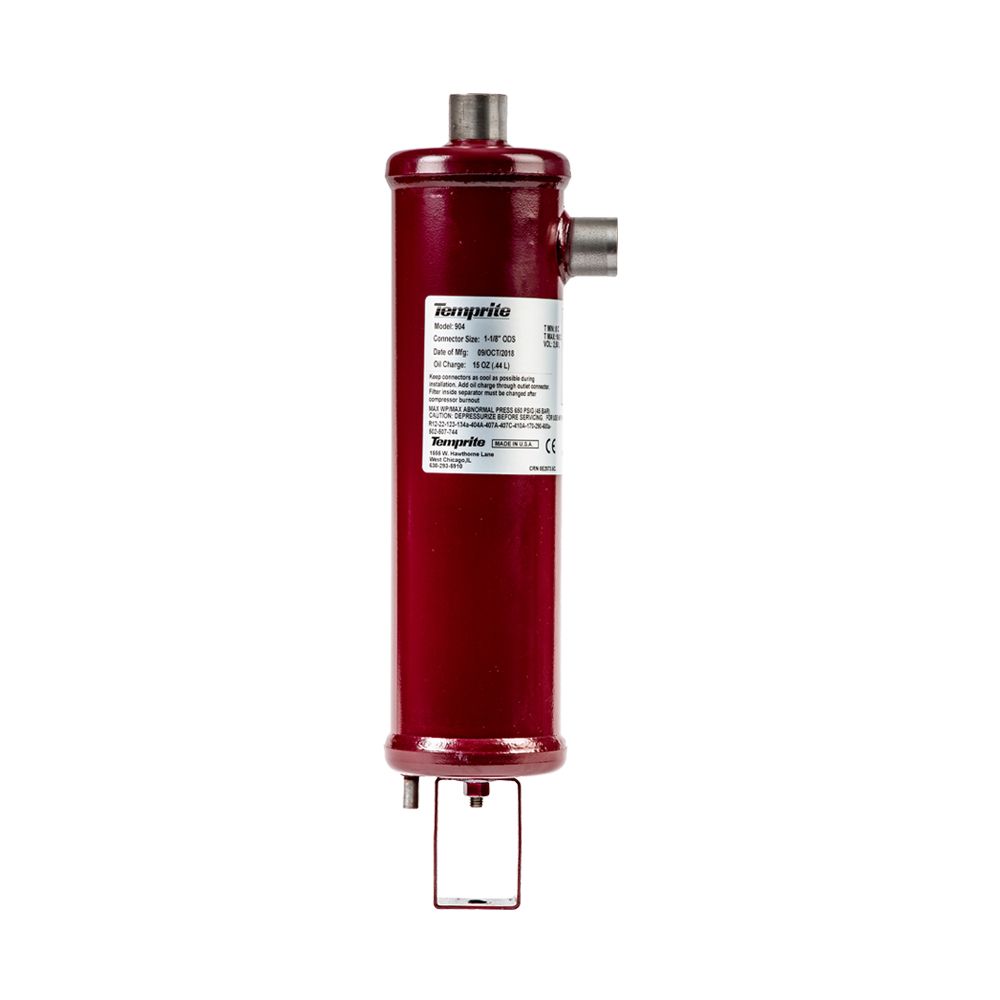

090400000 Temprite 904 Oil Separator

Temprite's 900 Series hermetic coalescent oil separators were the first high-efficiency separators and set the industry standard for performance. Unlike conventional separators, Temprite's 900 Series are not dependent on velocity for efficiency; coalescent oil separators maintain the same level of effectiveness down to 20% of maximum flow. A Dim. B Dim. C Dim. D Dim. E Dim. 1-1/8″ ODS* 28.58 mm 15-1/8″ 384 mm 18-3/8″ 467 mm 4″ 102 mm 3″ 76 mm *ODS = Outside Diameter SolderTHE CONNECTIONS ON THE OIL SEPARATOR MUST BE THE SAME SIZE AS (OR LARGER THAN) THE DISCHARGE LINE SIZE.
