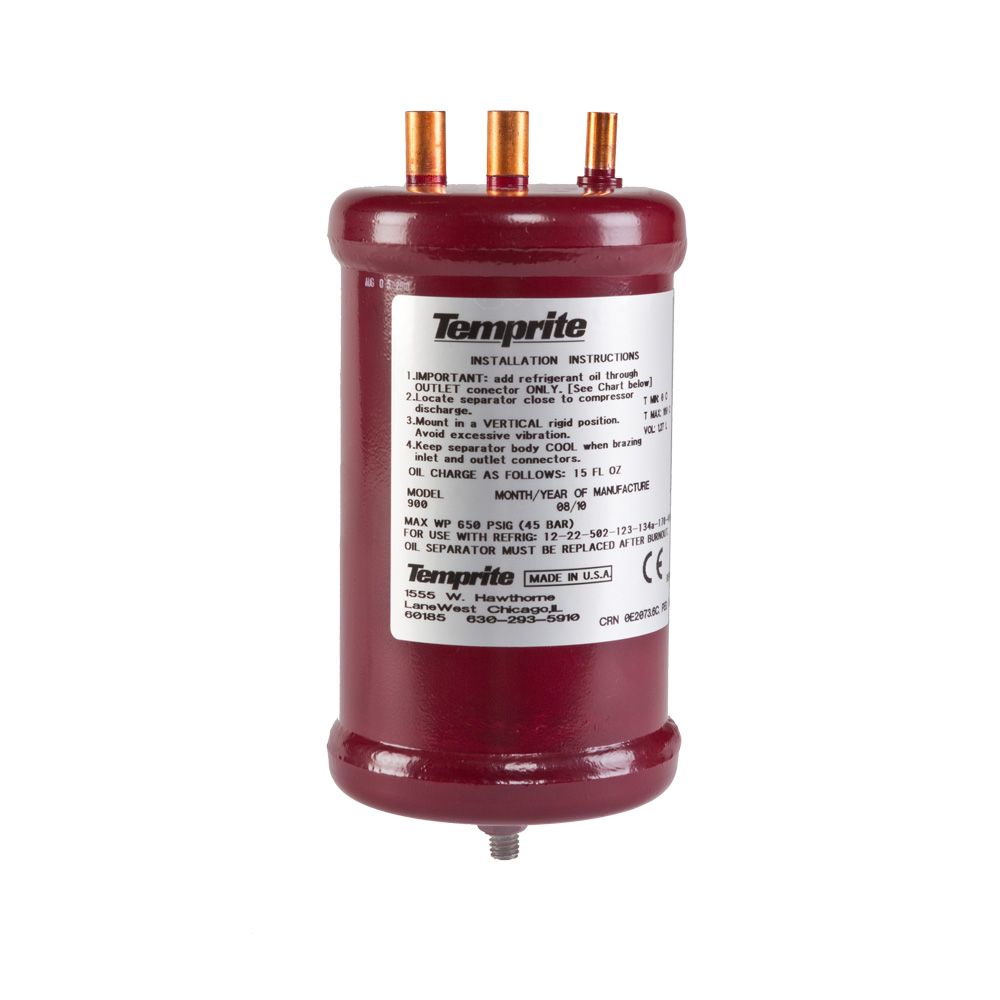

Temprite 900 Oil Separator. Maximum working pressure 44.8 bar (650 PSI). 1/4″ ODS (6.35 mm) connection size.
Temprite's 900 Series hermetic coalescent oil separators were the first high-efficiency separators and set the industry standard for performance.
Unlike conventional separators, Temprite's 900 Series are not dependent on velocity for efficiency; coalescent oil separators maintain the same level of effectiveness down to 20% of maximum flow.
A Dim. | B Dim. | C Dim. | D Dim. | Oil Charge Amt. |
3/8″ ODS* 9.53 mm | 8-1/4″ 210 mm | 3/4″ 19 mm | 4″ 102 mm | 15 oz. 445 ml. |
*ODS = Outside Diameter Solder
THE CONNECTIONS ON THE OIL SEPARATOR MUST BE THE SAME SIZE AS (OR LARGER THAN) THE DISCHARGE LINE SIZE..
Weight | 5.000000 |
---|---|
Condition | New |
Manufacturer | Temprite |
Model | 900 |
Max working pressure | 44.8 bar 650 PSI |
Oil Connection Size | 1/4″ ODS* 6.35 mm |
Oil Charge Amount | 15 oz. 445 ml. |
