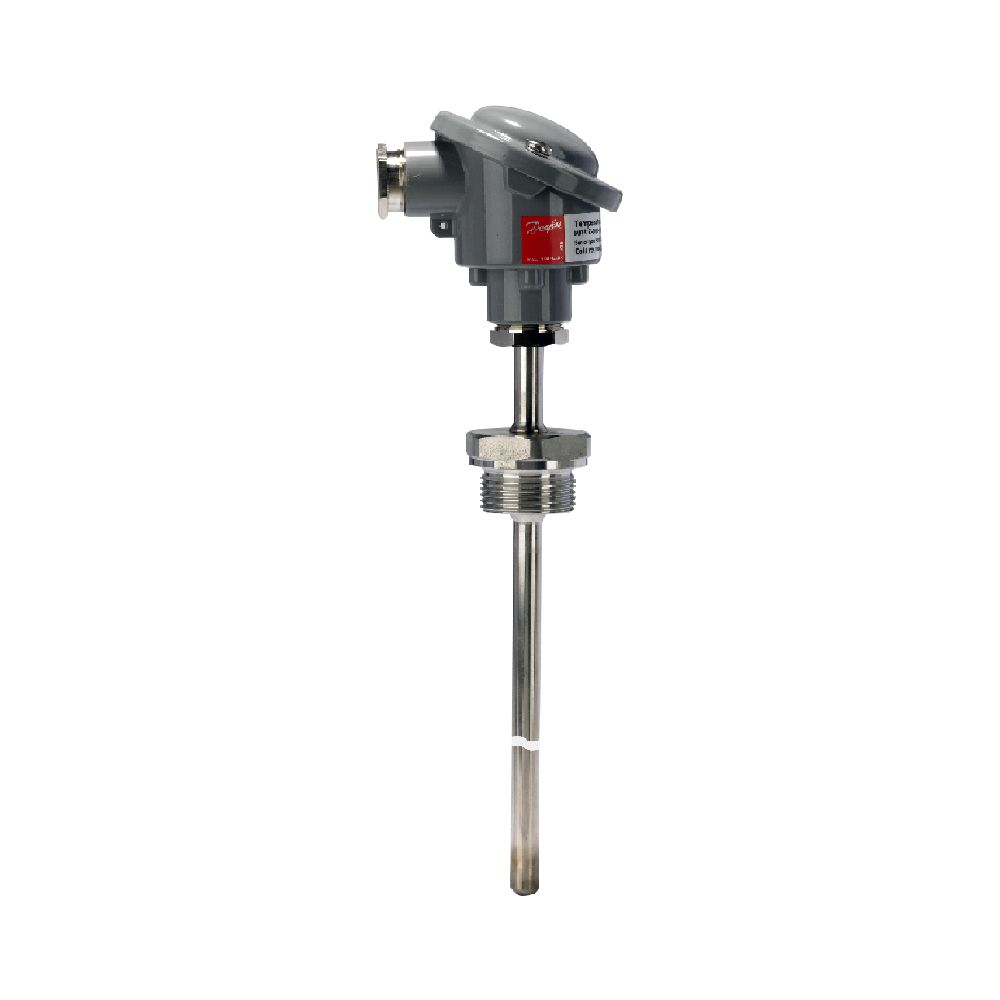

084Z6171 Danfoss -60-390F;2";PT100;NPT1/2;4-20 MBT5252-0011-0050-0700-G110

Heavy-duty temperature sensors for controlling cooling water, lubrication oil, hydraulic oil and refrigeration plants within general industry and marine applications. These temperature sensors are based on a standardized Pt 100 or Pt 1000 element, which gives a reliable and accurate measurement. All three sensor types can be delivered with NTC / PTC elements on request.In the low temperature version (-50 – 200 °C) the measuring insert is based on a silicone cable, which makes the sensor very resistant towards vibrations. The MBT 5250 with changeable measuring insert and MBT 5260 with fixed measuring insert are equipped with EN 175301-803-A, Pg 9 as standard. The MBT 5252 is equipped with a B-head as standard, but can also be delivered with B-mini Head on request. If needed, a transmitter (MBT 9110) can be ordered as an integrated part of the MBT 5252 sensor.Features:Gaseous or liquid media, e.g. air, gas, vapour, water or oil.Up to 200 °C media temperature (MBT 5250 and MBT 5260)Up to 200 °C or 400 °C media temperature (MBT 5252)Pt 100 or Pt 1000 sensing elementCan be used with 2- or 3-wire connectionsGold plated male and female connector (MBT 5250 and MBT 5260)MBT 5250 and MBT 5252 with interchangeable measuring insertMBT 5260 with fixed measuring insertAvailable with built-in transmitter (MBT 5252)
