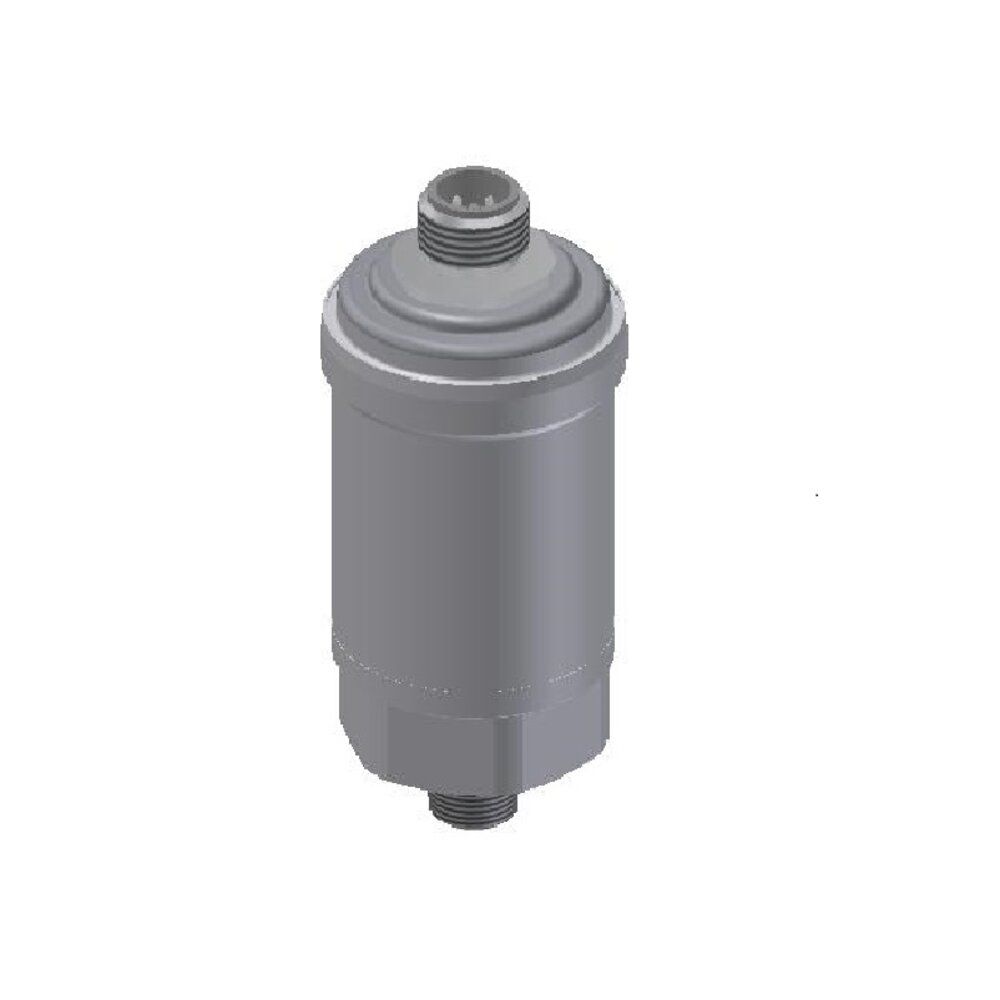

Danfoss AKS 33 Sensor, 1/8" NPT, 0-414.5 psi.
Web Price
$386.65
Details
Pressure transmitter type AKS 33 measures a pressure and converts the measured valve to a standard 4 → 20 mA signal.A robust design makes the AKS very suitable for application within a number of fields, such as:Air conditioning systemsRefrigeration plantProcess controlLaboratoriesFeatures:1⁄4” male NPT connectionDIN connectorStainless steel body and material in contact with mediumSuitable for all refrigerants, including ammoniaUL recognized for Class I, Group A, B, C, and D, Division 2Built-in voltage stabilizer for varying voltage supplySetting is maintained independent of variations in ambient temperature and atmospheric pressure. This is very important when ensuring evaporating pressure control in air conditioning and refrigeration applications.Polarity protected inputs
More Information
| Weight | 1.000000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| EAN | 5702423266487 |
| Enclosure Rating | IP67 |
| Max Medium Temperature Range C | 85 °C |
| Min Medium Temperature Range C | -40 °C |
| Max Medium Temperature Range F | 185 °F |
| Min Medium Temperature Range F | -40 °F |
| Supply voltage [V] DC [Max] | 30 V |
| Electrical Connection | M12 x 1 |
| Electrical Connection Size | 4 pin |
| Minimum Ambient Temperature (C) | -25 °C |
| Minimum Ambient Temperature (F) | -13 °F |
| Maximum Ambient Temperature (C) | 85 °C |
| Maximum Ambient Temperature (F) | 185 °F |
| Pressure Connection Size | 1/8-27 |
| Pressure Connection Standard | ANSI/ASME B1.20.1 |
| Pressure Connection Type | NPT |
| Pressure Range | 0 - 414.5 psi |
| Width | 3 |
| Height | 3 |
| Length | 6 |
