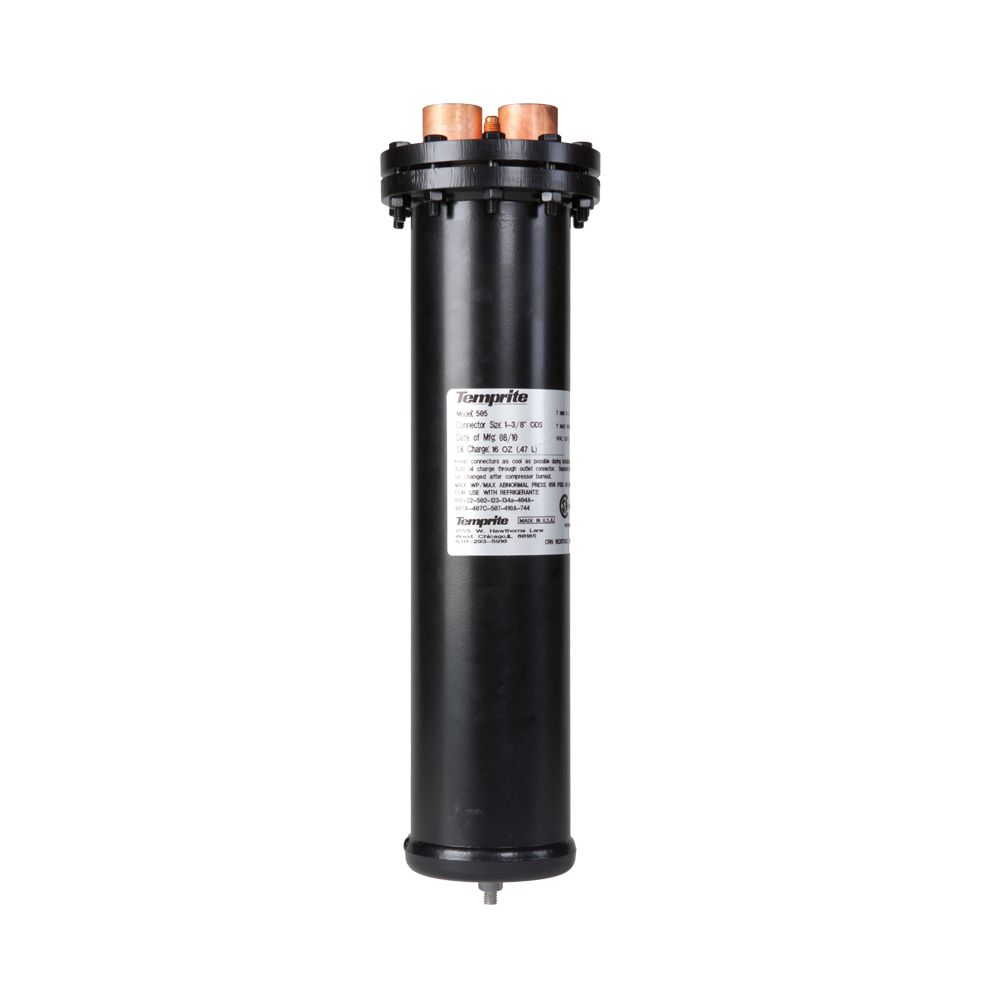

050500000 Temprite 505 Oil Separator

Temprite 500 Series Conventional Oil Separators are impingement screen separators.In these units, the compressed mass flow enters a larger separator chamber, lowering the velocity of the mass. Atomized oil droplets collect on the impingement screen surface; as the oil drops become larger they fall to the bottom of the separator.The 500 Series is designed for the OEM who needs oil separation and accessibility to the unit for filter changes.A Dim.B Dim.C Dim.D Dim.E Dim.1-3/8″ ODS* 34.93 mm18-7/8″ 479 mm3/4″ 19 mm4″ 102 mm5-1/2″ 140 mm*SAE = 45° Flare Connection, ODS = Outside Diameter SolderTHE CONNECTIONS ON THE OIL SEPARATOR MUST BE THE SAME SIZE AS (OR LARGER THAN) THE DISCHARGE LINE SIZE.
