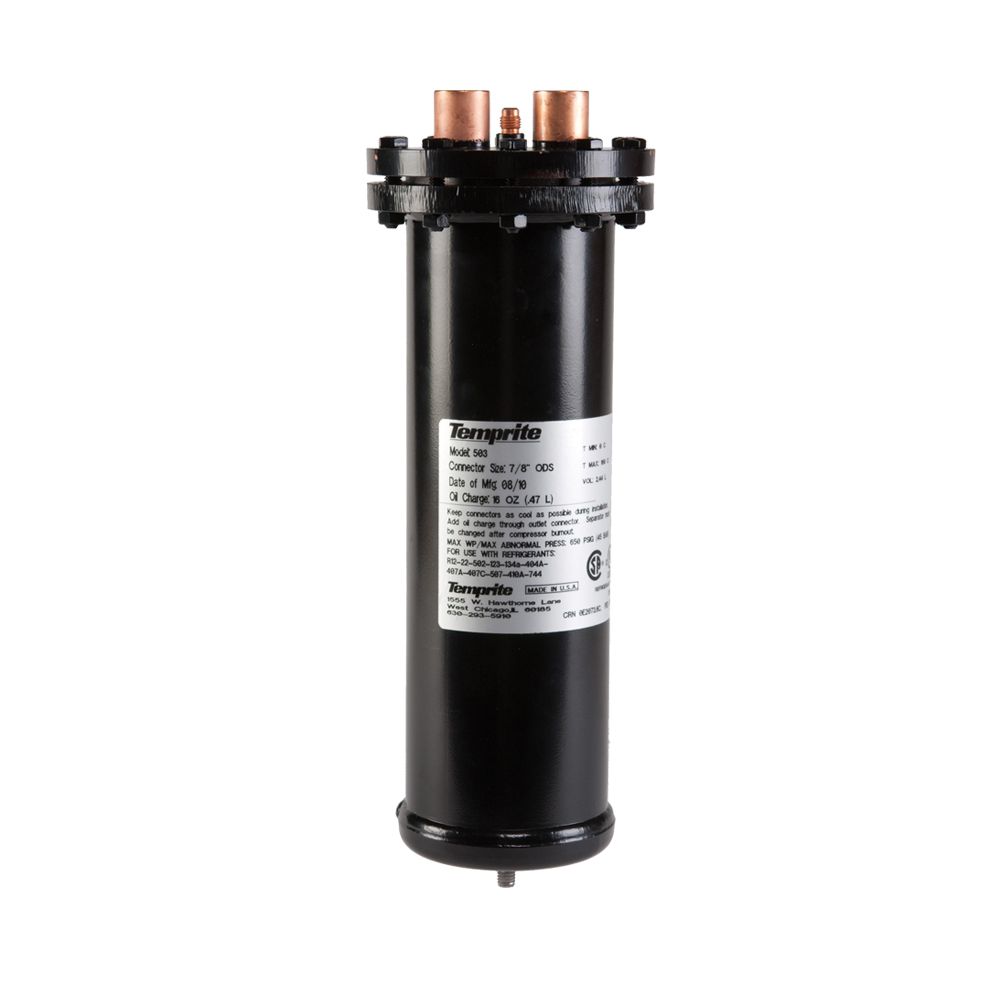

050300000 Temprite 503 Oil Separator

Temprite 500 Series Conventional Oil Separators are impingement screen separators. In these units, the compressed mass flow enters a larger separator chamber, lowering the velocity of the mass. Atomized oil droplets collect on the impingement screen surface; as the oil drops become larger they fall to the bottom of the separator. The 500 Series is designed for the OEM who needs oil separation and accessibility to the unit for filter changes.   Part # Model # Max. Working Press. Oil Conn. Size A Dim. B Dim. C Dim. D Dim. E Dim. Oil Charge Amt. 050300000 503 44.8 bar 650 PSI 1/4″ SAE* 7/8″ ODS* 22.23 mm 14-5/8″ 371 mm 3/4″ 19 mm 4″ 102 mm 5-1/2″ 140 mm 16 oz. 475 ml. *SAE = 45° Flare Connection, ODS = Outside Diameter SolderTHE CONNECTIONS ON THE OIL SEPARATOR MUST BE THE SAME SIZE AS (OR LARGER THAN) THE DISCHARGE LINE SIZE.
