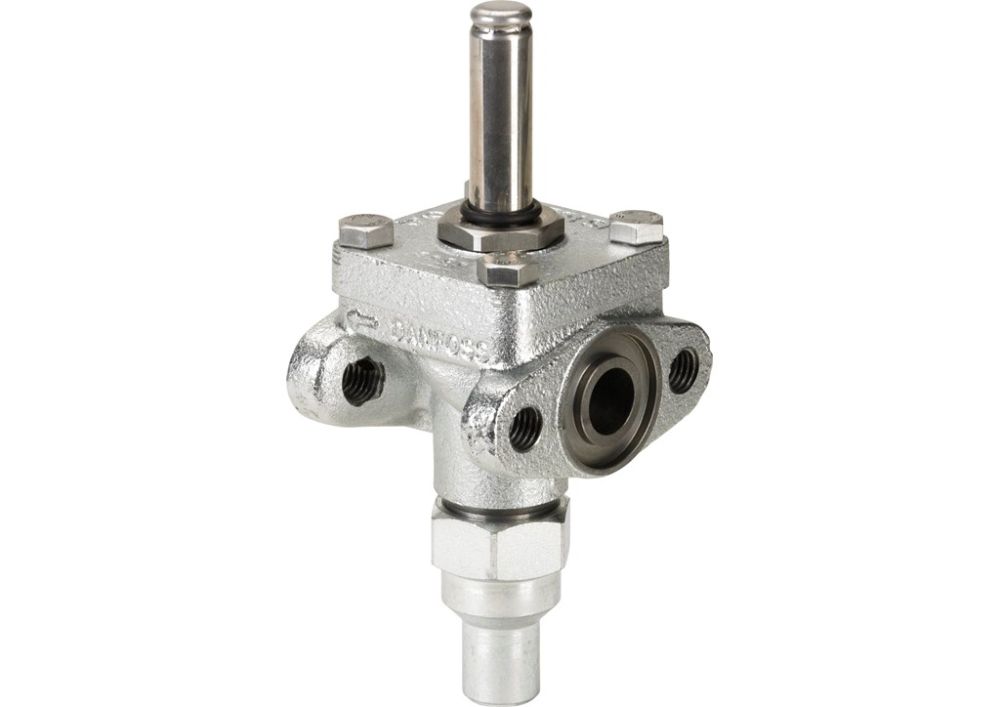

032F6220 Danfoss EVRA 20 Flange Valve a.c Singlep.
List Price
$734.17
List Price
$734.17
Web Price
$538.40
Details
EVRA is a direct or servo operated solenoid valve for liquid, suction and hot gas lines with ammonia or fluorinated refrigerants. EVRA valves are supplied complete or as separate components, i.e. valve body, coil and flanges can be ordered separately.
More Information
| Weight | 7.000000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| Ambient Temperature | -40 - 80 °C |
| Body Material | Cast iron |
| Cv Value [gal/min] | 5.2 gal/min |
| Kv value [m³/h] | 4.5 m³/h |
| Max Medium Temperature Range C | 105 °C |
| Min Medium Temperature Range C | -40 °C |
| Max Medium Temperature Range F | 221 °F |
| Min Medium Temperature Range F | -40 °F |
| Orifice Size | 20 mm |
| Inlet Connection Type | Flange |
| Refrigerants | R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R717, R507A |
| Minimum Ambient Temperature (F) | -40 °F |
| Maximum Ambient Temperature (F) | 175 °F |
| Maximum Working Pressure (PSIG) | 610 psig |
| Maximum Working Pressure (BAR) | 42 bar |
| GTIN/UPC | 5702422178323 |
| Width | 8 |
| Height | 5 |
| Length | 12 |
