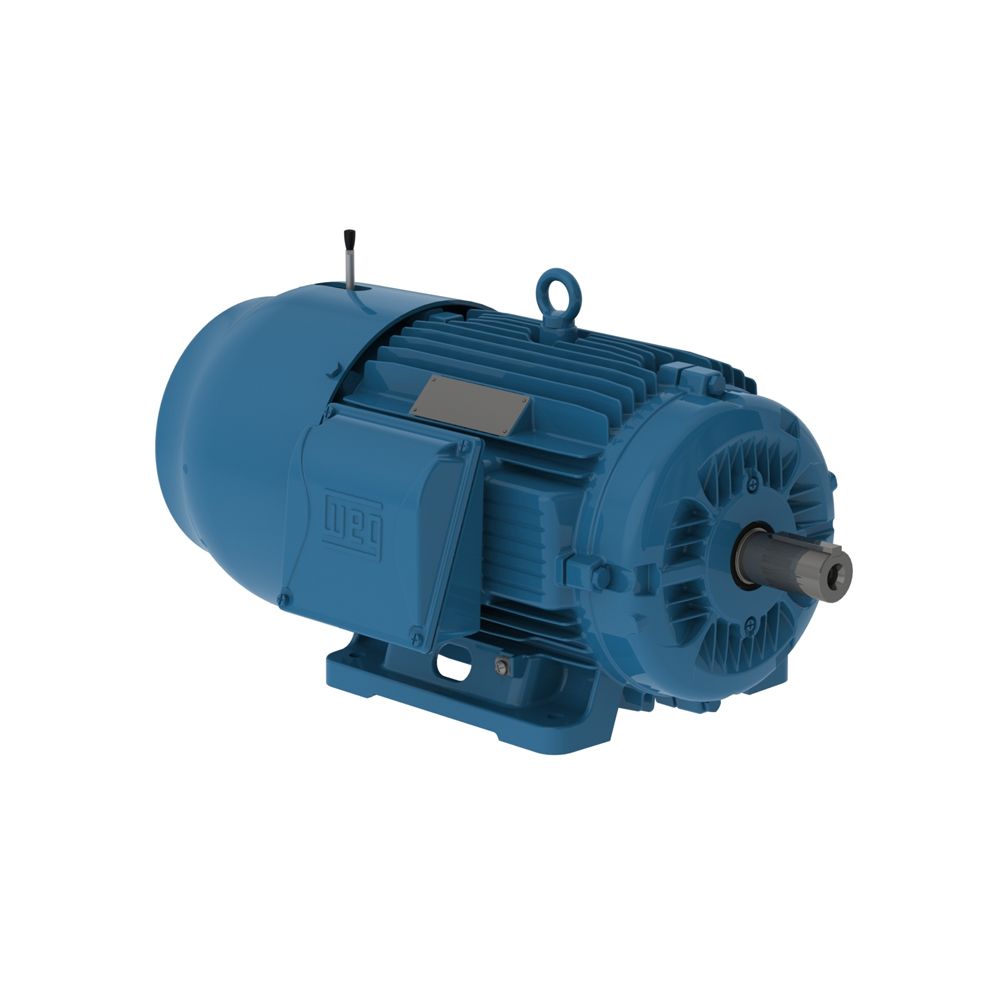

30HP, 1800 RPM, 3PH, 230V/460V, 284/6T Frame, Standard Flange, Foot Mount, TEFC, Brake Motor
Web Price
$7,656.58
Details
The W01 (Rolled Steel) motor is the perfect option for applications that require robustness, low weight and high performance in a single product. It has good thermal performance, easy installation and maintenance and it is able to operate on an elastic base. With steel plate frame and aluminum flange, these versatile single-phase motors provide torque and durability for several applications.
More Information
| Weight | 549.310000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460 V |
| Number of Poles | 4 |
| Degree of Protection | IP55 |
| Synchronous Speed | 1800rpm |
| Output Rating | 30 HP |
| Mounting | Foot-mounted (F-1) |
| Flanges | Without Flange |
| Terminal Box | Left position |
| Enclosure | IC411-TEFC |
