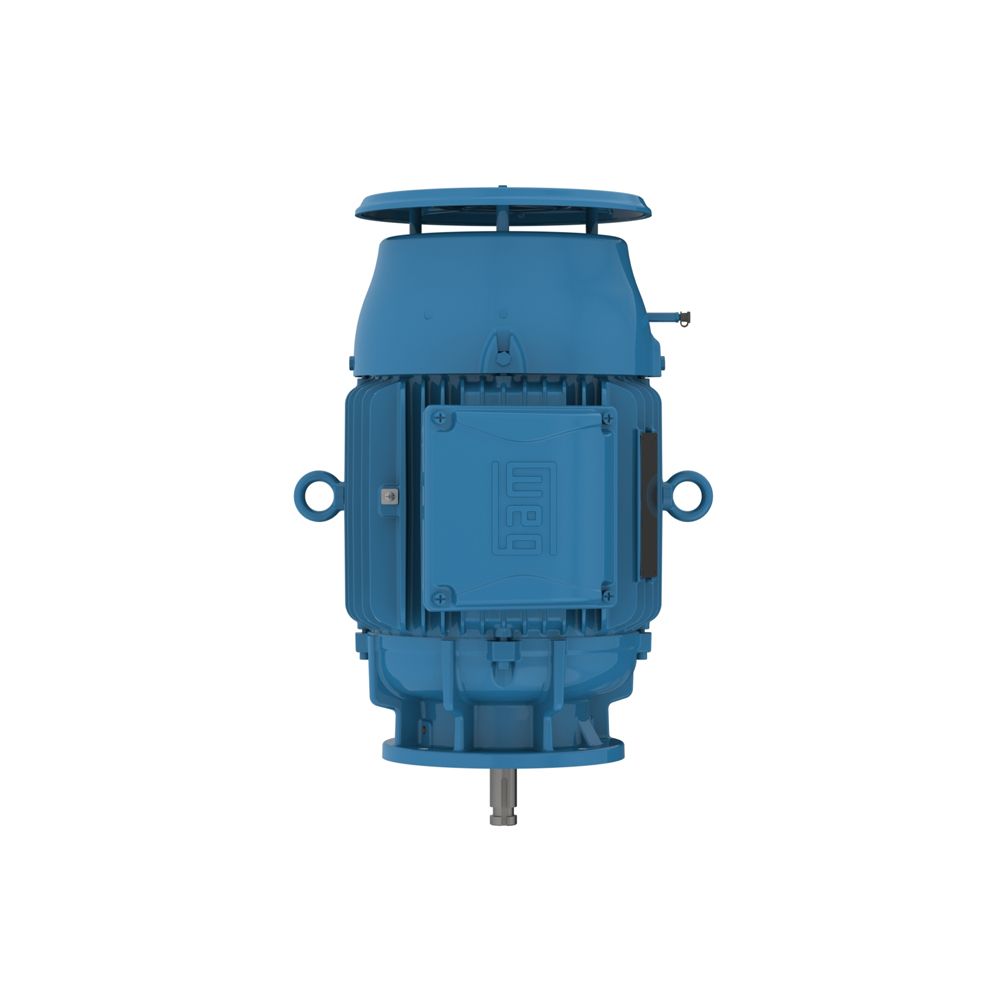

30HP, 1800 RPM, 3PH, 230V/460V, 286HP Frame, P-BASE Flange, Footless, TEFC, P-Base Pump Motor
Web Price
$4,174.51
Details
The W01 motor is the perfect option for applications that require robustness, low weight and high performance in a single product. The W01 Rolled Steel platform has good thermal performance and easy installation and maintenance. With steel plate frame and aluminum flange, these versatile motors provide torque and durability for applications where dirt and humidity are minimal.
More Information
| Weight | 494.510000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 230/460//380 V |
| Number of Poles | 4 |
| Degree of Protection | IP55 |
| Synchronous Speed | 1800rpm |
| Output Rating | 30 HP |
| Mounting | Footless (W-6) |
| Flanges | P-Base Flange |
| Terminal Box | Left position |
| Enclosure | IC411-TEFC |
