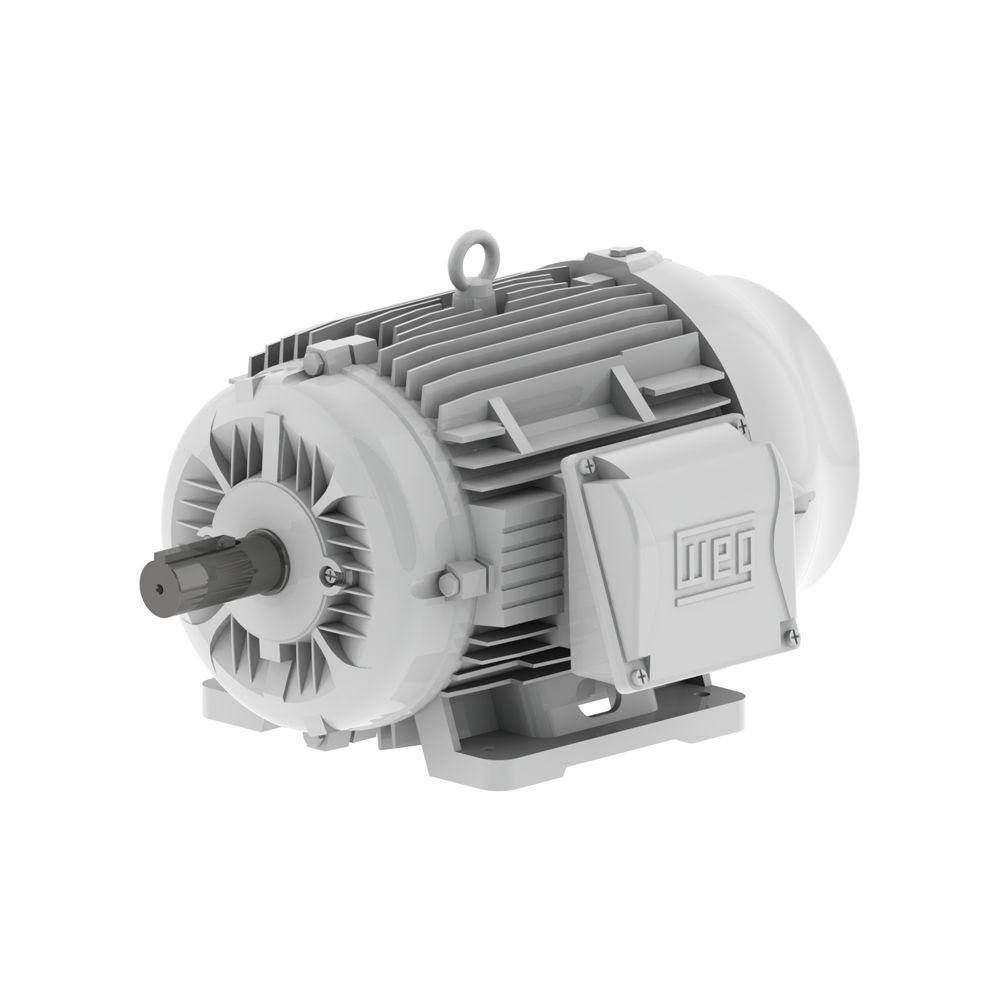

30HP, 1200 RPM, 3PH, 208V,230V,460V, 324/6T Frame, Standard Flange, Foot Mount, TEFC, Oil Well Pump Motor
Web Price
$4,751.17
Details
W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
These motors are supplied with Aegis® bearing protection ring to avoid current flow along the motor shaft, across the bearing and return to the frame thus preventing premature bearing wear and failure due to electric currents flowing through them.
More Information
| Weight | 635.680000 |
|---|---|
| Condition | New |
| Brand | WEG |
| Standard | NEMA MG-1 |
| Frequency | 60 Hz |
| Voltage | 208-230/460 V |
| Number of Poles | 6 |
| Degree of Protection | IP55 |
| Synchronous Speed | 1200rpm |
| Output Rating | 30 HP |
| Mounting | Foot-mounted (F-2) |
| Flanges | Without Flange |
| Terminal Box | Right position |
| Enclosure | IC411-TEFC |
