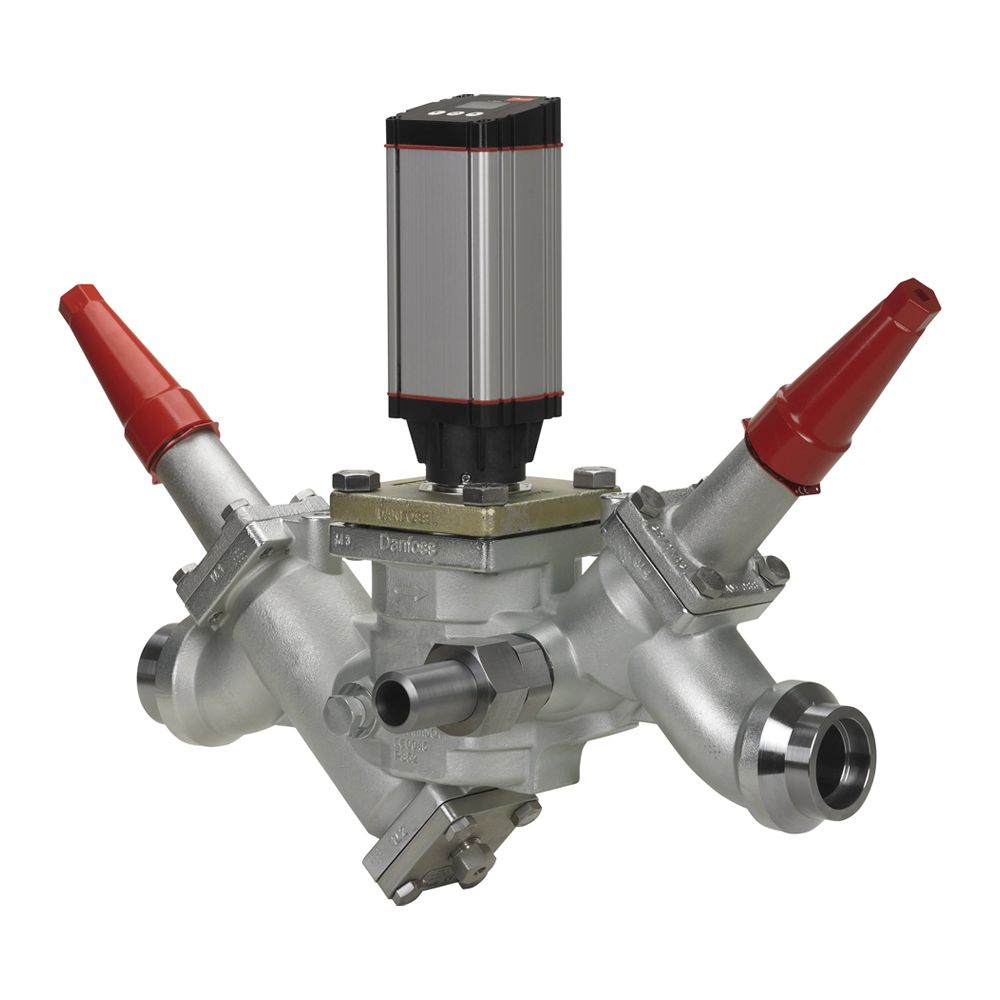

027L5014 Danfoss ICF 50-4-43MA Valve Station, 1 1/2"

ICF 50-4-43MA Valve Station, 1 1/2"

List Price $5,352.08 List Price $5,352.08 Web Price $3,622.94

Qty:

Details

ICF 50-4-43MA Valve Station, 1 1/2"

More Information

More Information
Weight	84.880000
Brand	Danfoss
Condition	New
EAN	5702428917841
Body Material	Steel
Connection	1-1/2"
Connection Standard	ASME B 16.11
Connection Type	Socket weld
Side Port Placement	P1-P3
Side Port Quantity [PC]	2 pc
Connection Size (MM)	40 mm
Defrost Port Placement	P2-P4
Defrost Port Quantity [pc]	2 pc
Direction	Straightway
Equipment	Cap
Fluid Group	I
Maximum Working Pressure (BAR)	52 bar
Maximum Working Pressure [PSIG]	754 psig
Module 1	Stop Valve
Module 1 Type	SVA-S 50
Module 2	Filter Cover (NO FIA Filter)
Module 2 Type	ICFB 50
Module 3	Control Valve
Module 3 Type	ICM 50-A
Module 4	Stop Valve
Module 4 Type	SVA-S 50
Product Accessories	ICF accessories
Product Description	Control Solution
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1233zd(E) R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A
Serviceable	ICF Spare Parts
Surface Coating	ZnCr04
Temperature range [°C] [Max]	120°C
Temperature range [°C] [Min]	-60°C
Temperature range [°F] [Max]	248°F
Temperature Range [°F] [Min]	-76°F
Type	ICF 50-4-43MA
