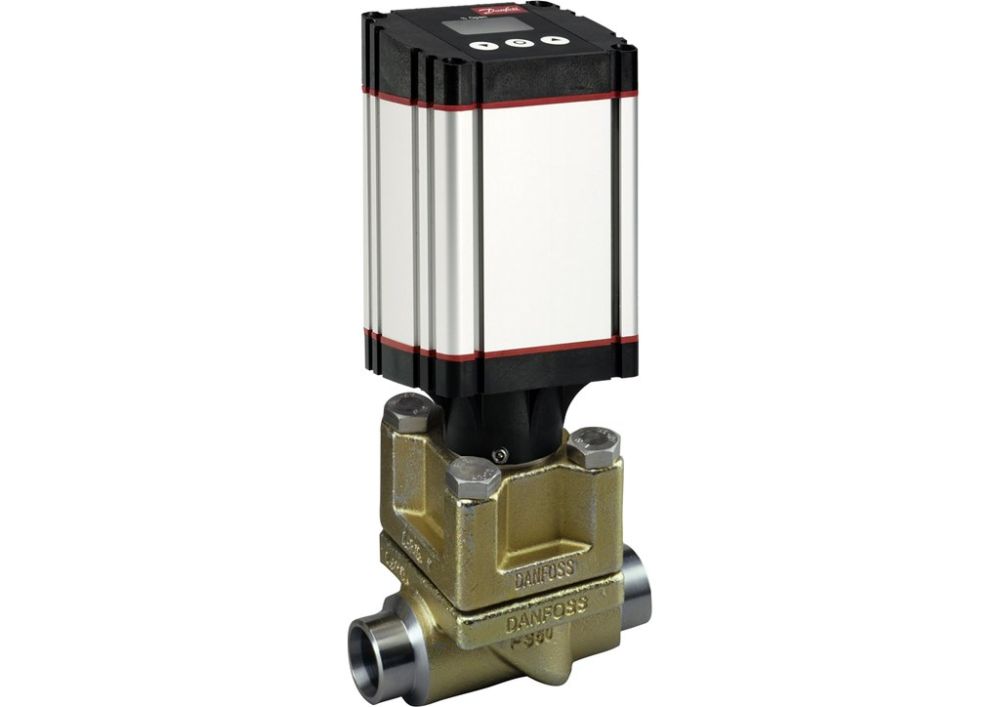

ICM 20-C 1 ANSI (25A)
List Price
$2,831.79
List Price
$2,831.79
Web Price
$1,916.91
Details
ICM valves are designed to regulate an expansion process in liquid lines with or without phase change or control pressure or temperature in dry and wet suction lines and hot gas lines. ICM valves are designed so that the opening and closing forces are balanced, therefore, only two sizes of ICAD actuators are needed for the complete range of ICM from DN 20 to DN 150. The ICM motor operated valve and ICAD actuator assembly offrs a very compact unit with small dimensions.
More Information
| Weight | 4.250000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| Body Material | Steel |
| Minimum Temperature Range C | -60 °C |
| Minimum Temperature Range F | -76 °F |
| Maximum Temperature Range F | 248 °F |
| Maximum Temperature Range C | 120 °C |
| Inlet Connection Type | Butt Weld |
| Maximum Working Pressure (PSIG) | 754 psig |
| Maximum Working Pressure (BAR) | 52 bar |
| Outlet Connection | 1" |
| Inlet | 1" |
| GTIN/UPC | 5702428237376 |
