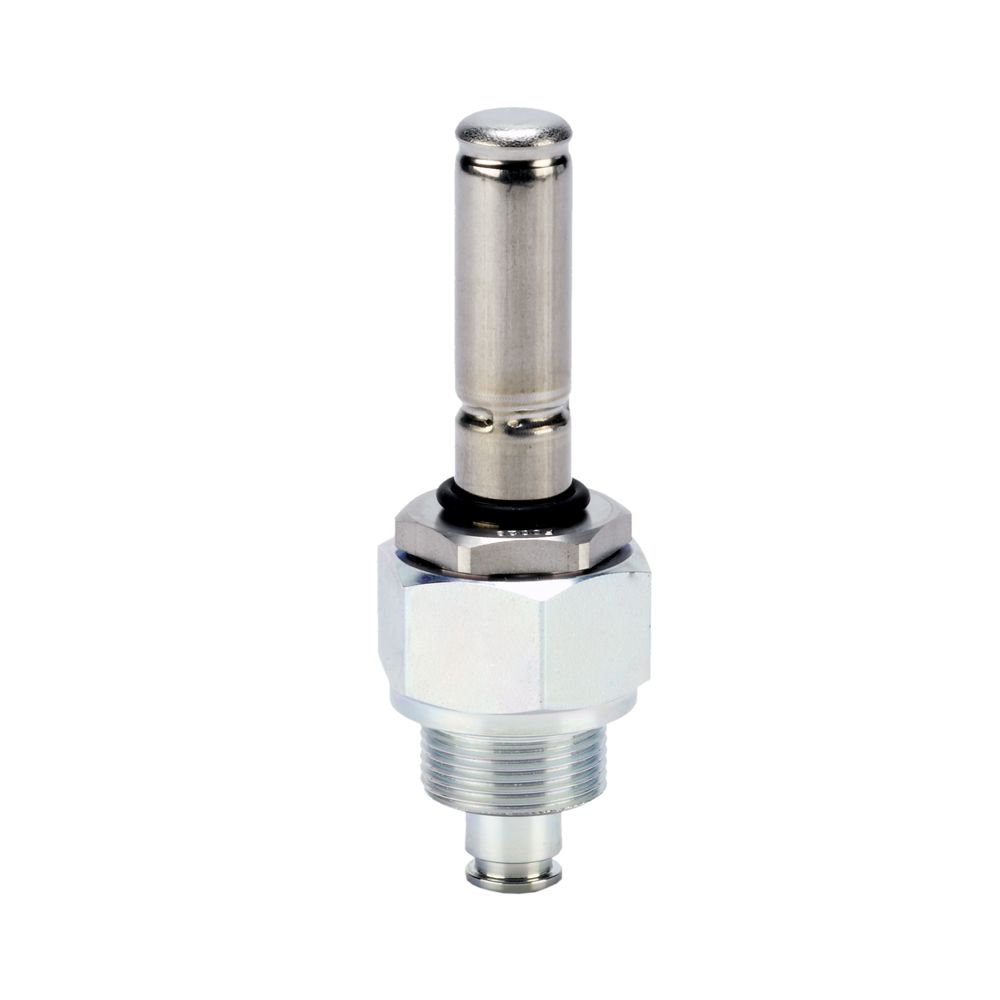

EVM Normally Open (NO) Solenoid Pilot Valve
List Price
$390.91
List Price
$390.91
Web Price
$286.67
Details
EVM is a solenoid pilot valve for use when on/off operation of the main valve is required. EVM valves are intended for use with Danfoss solenoid valve coils ("Coils for solenoid valves", data sheet DKRCC.PD.BS0.F).
Together with CVH, an EVM can also be used as an independent solenoid valve.
More Information
| Weight | 2.000000 |
|---|---|
| Brand | Danfoss |
| Condition | New |
| EAN | 5702430000000 |
| Body Material | Steel |
| Type | EVM |
| Orifice Size | 1.8 mm |
| Refrigerants | R134a, R22, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R717, R744, R507A |
| Inlet Connection Type | Thread |
| Min Medium Temperature Range C | -60°C |
| Min Medium Temperature Range F | -76°F |
| Max Medium Temperature Range C | 120°C |
| Max Medium Temperature Range F | 248°F |
| Maximum Working Pressure (BAR) | 52 bar |
| Maximum Working Pressure (PSIG) | 754 psig |
| Minimum Ambient Temperature (F) | -40°F |
| Maximum Ambient Temperature (F) | 176°F |
| Ambient Temperature | -40 to 80°C |
